Part Details | CABLE STRAIN RELIEF BUSHING
5975-00-583-8552 An insulating item designed to prevent movement along the axis of an electric wire or cable in either direction when placed in the chassis of such items as electric fans, irons, drills, motors, radios, clocks and the like. It may be designed for use in the central column of a gun mount and the like. See also COLLAR, CABLE.
Alternate Parts: SR141, SR14-1, 5975-00-583-8552, 00-583-8552, 5975005838552, 005838552
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-583-8552 | 19775 ( BUSHING, STRAIN RELIEF, CABLE ) |

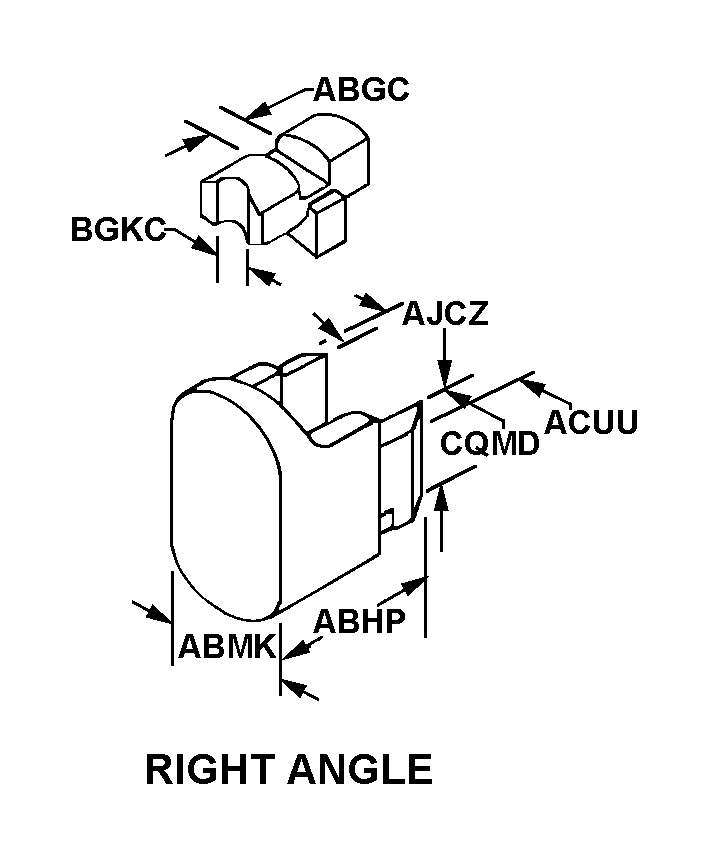

REFERENCE DRAWINGS & PICTURES
RIGHT ANGLE
Cross Reference | NSN 5975-00-583-8552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SR14-1 | 28520 | HEYCO INCDBA HEYCO PRODUCTS |
Technical Data | NSN 5975-00-583-8552
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RIGHT ANGLE |
| SLOT WIDTH | 0.100 INCHES NOMINAL |
| OVERALL LENGTH | 0.688 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.030 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.450 INCHES NOMINAL |
| MOUNTING METHOD | COMPRESSION |
| MOUNTING DEVICE QUANTITY | 1 |
| FLEXIBILITY | FLEXIBLE |
