Part Details | ELECTRICAL EQUIPMENT DRAWER
5975-00-926-7563 An item designed to slide in and out of a CABINET, ELECTRICAL EQUIPMENT or RACK, ELECTRICAL EQUIPMENT and used to mount and/or store electrical/electronic equipment. It does not include the electrical/electronic equipment, but may include wires, cables, terminal boards, connectors, etc.
Alternate Parts: CH622PFSQ75V, FA5709, FA56582, FA5658-2, 5975-00-926-7563, 00-926-7563, 5975009267563, 009267563
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 07, 1968 | 00-926-7563 | 29922 ( DRAWER, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

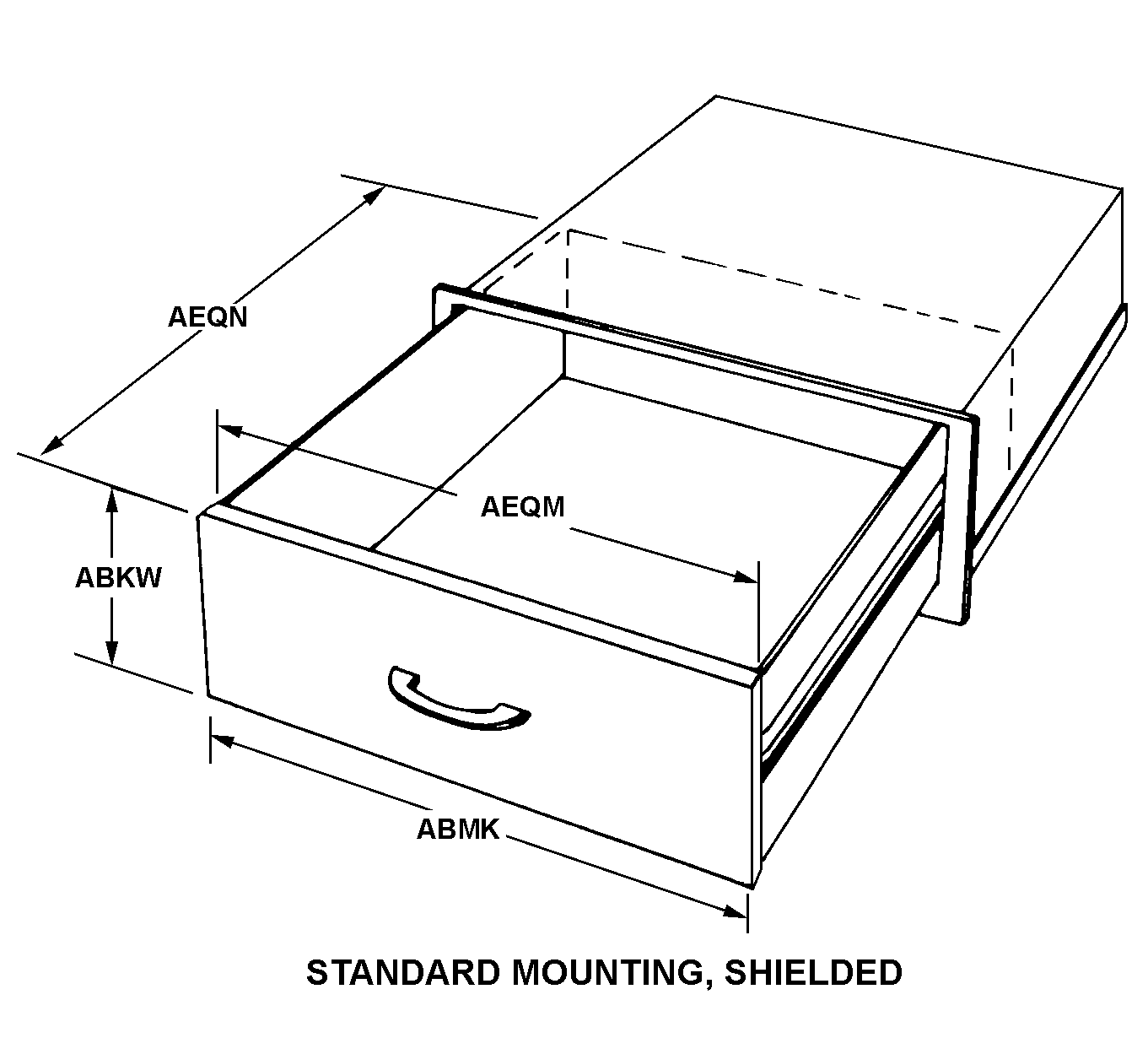

STANDARD MOUNTING, SHIELDED
Cross Reference | NSN 5975-00-926-7563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CH622PFSQ75V | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| FA5709 | 08125 | U S DEPT OF TRANSPORTATION FEDERALAVIATION ADMINISTRATION |
| FA5658-2 | 08125 | U S DEPT OF TRANSPORTATION FEDERALAVIATION ADMINISTRATION |
Technical Data | NSN 5975-00-926-7563
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STANDARD MOUNTING, SHIELDED |
| OVERALL HEIGHT | 7.000 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| DRAWER INSIDE WIDTH | 17.000 INCHES NOMINAL |
| DRAWER INSIDE DEPTH | 11.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GRAY |
| COMPONENT MOUNTING FACILITY TYPE AND QUANTITY | 8 THREADED HOLE |
| SLIDE MECHANISM TYPE | RAIL |
| MAXIMUM WEIGHT CAPACITY | 40.0 POUNDS |
| FEATURES PROVIDED | PREWIRED |
| FSC APPLICATION DATA | RADIO AND TELEVISION COMMUNICATION EQUIPMENT,EXCEPT AIRBORNE |
