Part Details | ELECTRICAL EQUIPMENT SHELF
5975-00-954-6641 An item relatively thin in its vertical dimension, designed to provide a horizontal working surface on the front of a CABINET, ELECTRICAL EQUIPMENT or a RACK, ELECTRICAL EQUIPMENT. May include wiring, power outlets and similar accessories. May be furnished with slides to permit stowing within the cabinet or rack when not in actual use.
Alternate Parts: BS1980, 5975-00-954-6641, 00-954-6641, 5975009546641, 009546641
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 11, 1966 | 00-954-6641 | 20774 ( SHELF, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

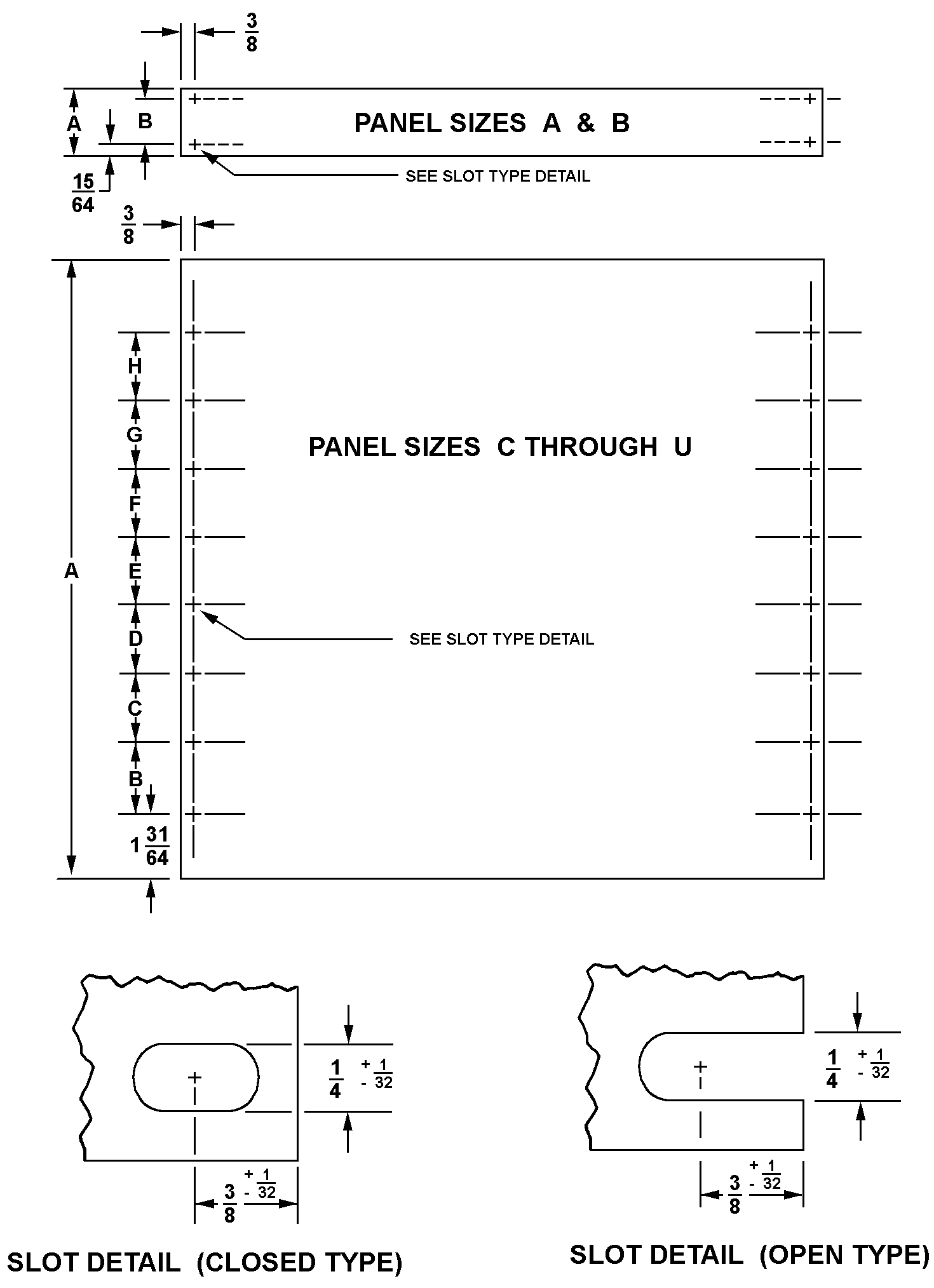

CLOSED SLOT
SLIDE MOUNTED
Cross Reference | NSN 5975-00-954-6641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BS1980 | 74156 | ANGO ELECTRONICS CORPORATIONDBA PAR METAL PRODUCTS |
Technical Data | NSN 5975-00-954-6641
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLIDE MOUNTED |
| SHELF WIDTH | 17.250 INCHES NOMINAL |
| SHELF DEPTH | 14.000 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STANDARD MOUNTING PATTERN DESIGNATOR | CLOSED SLOT |
| HANDLING FACILITY TYPE | FIXED EXTERNAL HANDLES |
| SLIDE MECHANISM TYPE | RAIL |
| MAXIMUM WEIGHT CAPACITY | 50.0 POUNDS |
