Part Details | STUFFING TUBE
5975-01-009-7608 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: DBZP510S169, DBZP-510-S169, 19437585, 1943758-5, 19437585, 1943758-5, 5975-01-009-7608, 01-009-7608, 5975010097608, 010097608
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 15, 1975 | 01-009-7608 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

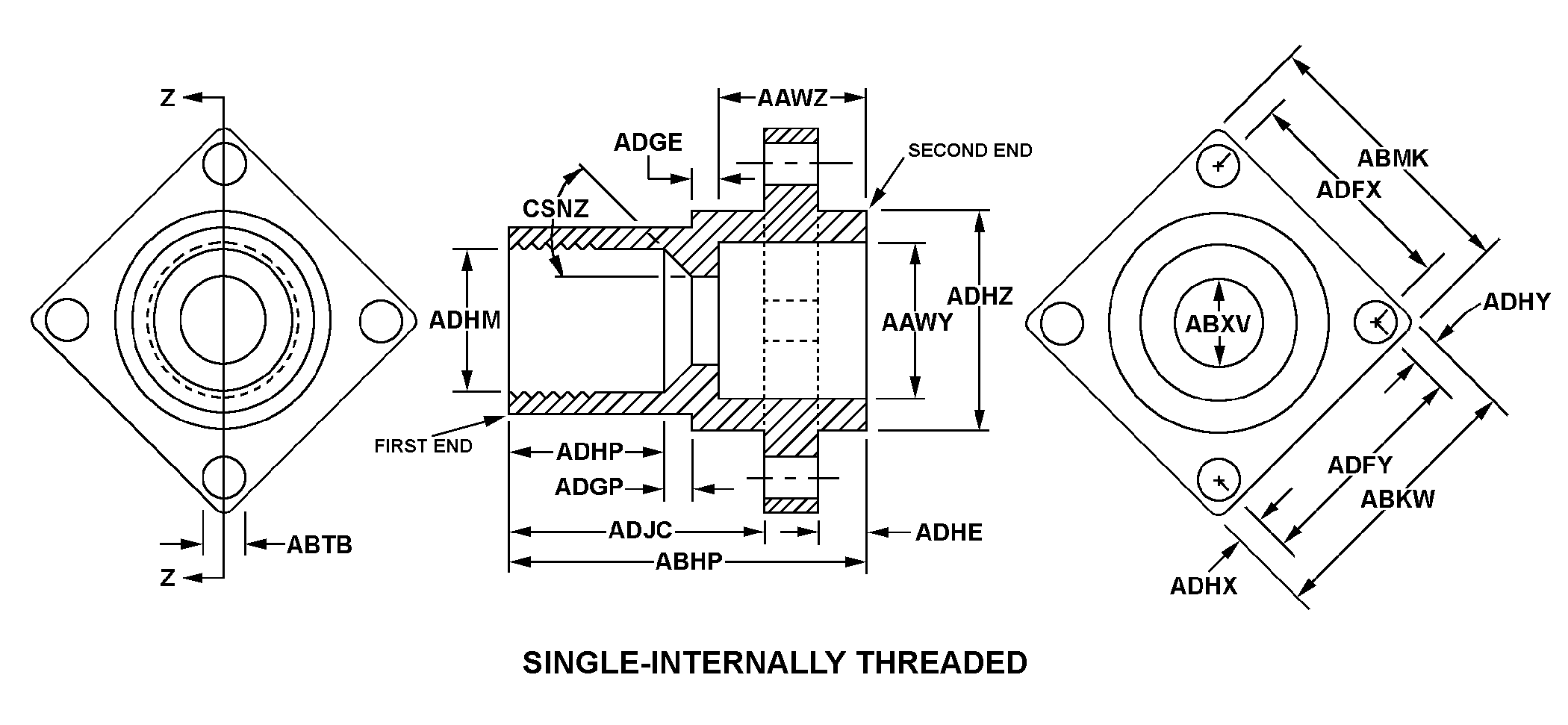

SINGLE-INTERNALLY THREADED
Cross Reference | NSN 5975-01-009-7608
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DBZP-510-S169 | 49367 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE INDUSTRIAL |
| 1943758-5 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| 1943758-5 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
Technical Data | NSN 5975-01-009-7608
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE-INTERNALLY THREADED |
| OVERALL LENGTH | 2.680 INCHES NOMINAL |
| OVERALL HEIGHT | 1.610 INCHES NOMINAL |
| OVERALL WIDTH | 1.610 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.193 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.260 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.260 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.946 INCHES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | BOLT |
| FURNISHED ITEMS | GASKET AND WASHER AND GLAND NUT |
