Part Details | ELECTRONIC JUNCTION RACK
5975-01-019-3209 An open frame structure specifically designed to accommodate (but does not include) electronic terminal junctions (TERMINAL BOARD; TERMINAL (1), FEEDTHRU; and the like). The item may consist of separable or nonseparable channels, mounting blocks and fastening devices. Mounting blocks are designed so the assembly can be mounted on panels or bulkheads. Tightening the fastening devices which secure the channels to the mounting blocks will also secure terminal junctions within the frame assembly. Excludes RACK, ELECTRICAL EQUIPMENT; TERMINAL BOARD; JUNCTION BOX; and HARDWARE KIT, ELECTRONIC EQUIPMENT.
Alternate Parts: JF13E0113, JF13E-01-13, STBT42K04561A, SMA7203962, SM-A-720396-2, 5975-01-019-3209, 01-019-3209, 5975010193209, 010193209
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 14, 1976 | 01-019-3209 | 32039 ( RACK, ELECTRONIC JUNCTION ) |

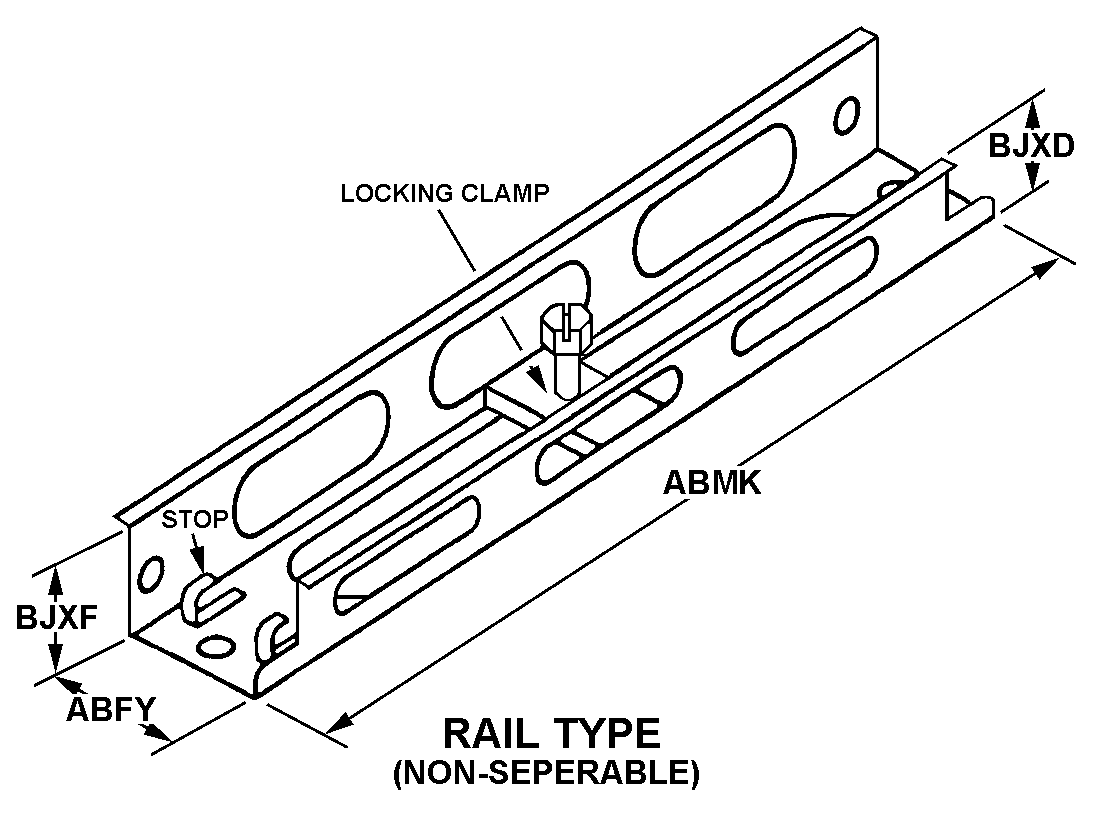

REFERENCE DRAWINGS & PICTURES
RAIL TYPE
Cross Reference | NSN 5975-01-019-3209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JF13E-01-13 | 11139 | TE CONNECTIVITY CORPORATIONDBA DEFENSE AEROSPACE OPERATIONS |
| STBT42K04561A | 81205 | THE BOEING COMPANYDBA BOEING |
| SM-A-720396-2 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-01-019-3209
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RAIL TYPE |
| OVERALL DEPTH | 0.792 INCHES NOMINAL |
| OVERALL WIDTH | 4.561 INCHES NOMINAL |
| MINOR CHANNEL HEIGHT | 0.386 INCHES NOMINAL |
| MAJOR CHANNEL HEIGHT | 0.792 INCHES NOMINAL |
| MATERIAL | STEEL |
| END ITEM IDENTIFICATION | 5895013846751 |
