Part Details | ELECTRICAL EQUIPMENT DRAWER
5975-01-234-5083 An item designed to slide in and out of a CABINET, ELECTRICAL EQUIPMENT or RACK, ELECTRICAL EQUIPMENT and used to mount and/or store electrical/electronic equipment. It does not include the electrical/electronic equipment, but may include wires, cables, terminal boards, connectors, etc.
Alternate Parts: RSX3C25, RSX-3C-25, 5975-01-234-5083, 01-234-5083, 5975012345083, 012345083
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 14, 1986 | 01-234-5083 | 29922 ( DRAWER, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

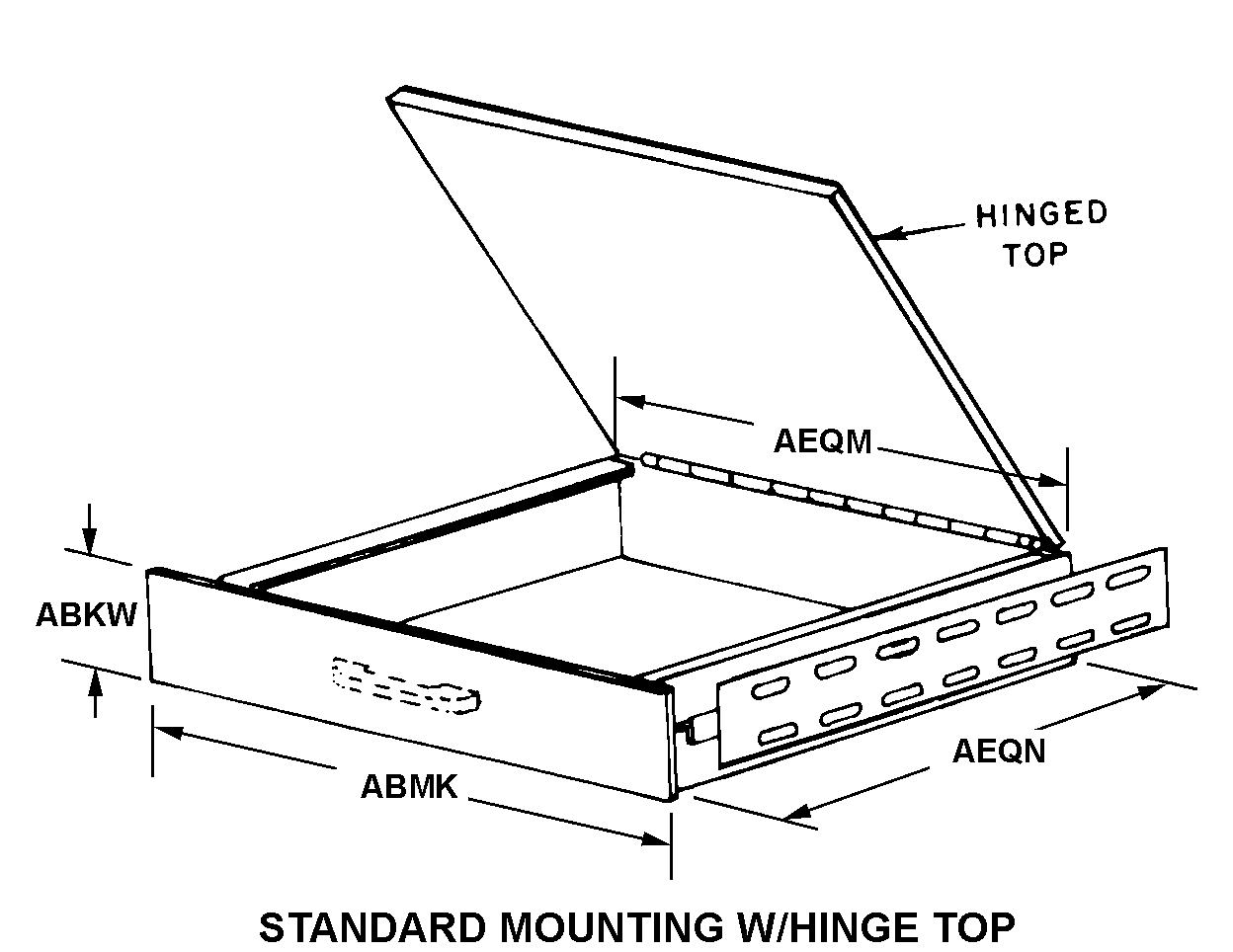

STANDARD MOUNTING W/HINGE TOP
Cross Reference | NSN 5975-01-234-5083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RSX-3C-25 | 55355 | CRENLO CAB PRODUCTS, INCDBA CRENLO |
Technical Data | NSN 5975-01-234-5083
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STANDARD MOUNTING W/HINGE TOP |
| OVERALL HEIGHT | 3.469 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| DRAWER INSIDE WIDTH | 17.250 INCHES NOMINAL |
| DRAWER INSIDE DEPTH | 23.500 INCHES NOMINAL |
| MATERIAL | STEEL |
| SLIDE MECHANISM TYPE | BALL BEARINGS |
| MAXIMUM WEIGHT CAPACITY | 90.0 POUNDS |
