Part Details | STUFFING TUBE
5975-01-378-1842 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: E6143S20075S055, 5975-01-378-1842, 01-378-1842, 5975013781842, 013781842
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 12, 1993 | 01-378-1842 | 00882 ( STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

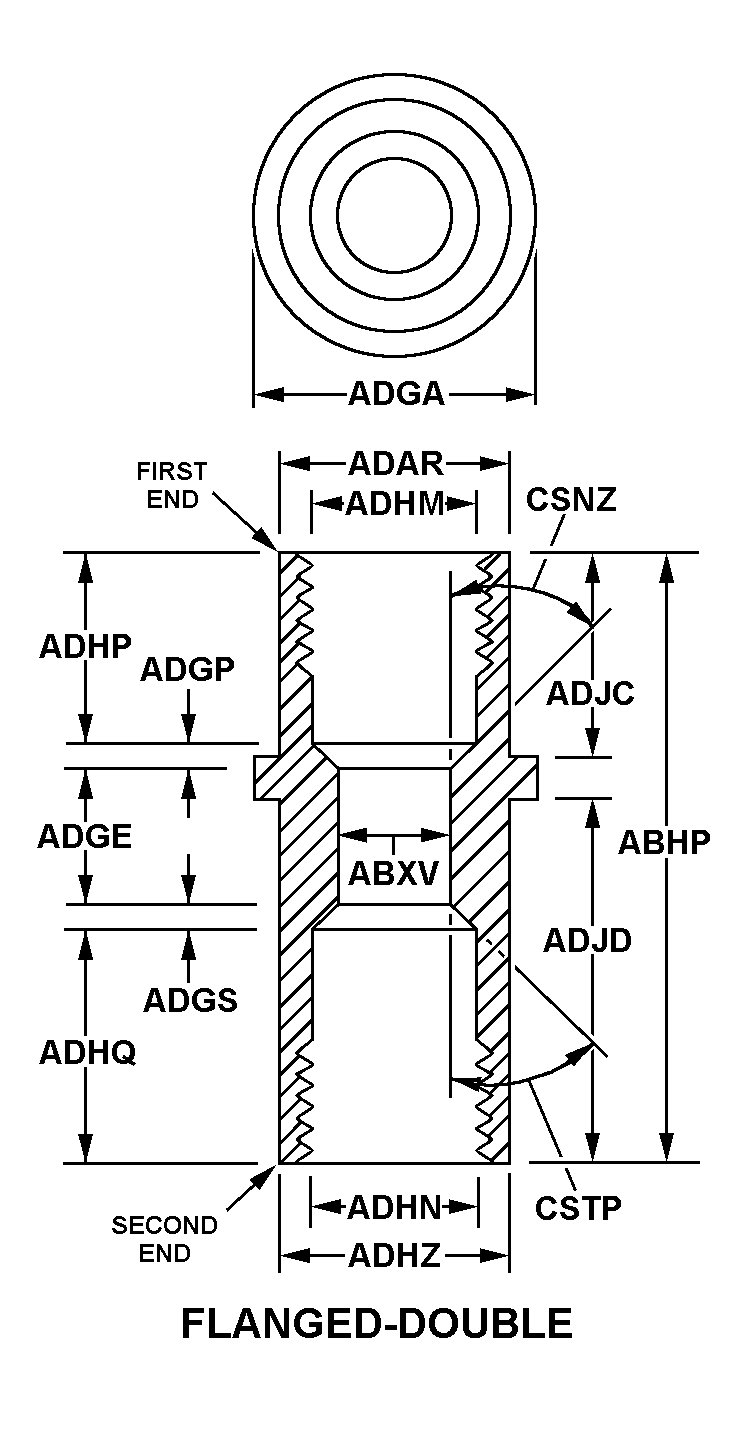

FLANGED-DOUBLE
Cross Reference | NSN 5975-01-378-1842
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E6143S20075S055 | 31461 | ELECTRO ADAPTER, INC.DBA PLATING |
Technical Data | NSN 5975-01-378-1842
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLANGED-DOUBLE |
| BODY OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.031 INCHES NOMINAL |
| MOUNTING OUTSIDE DIAMETER | 1.312 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 1.188 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF SECOND PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 0.625 INCHES NOMINAL |
