Part Details | WAVEGUIDE SWITCH
5985-00-112-4170 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: G128100001, G128-100-001, MA83201Z6, MA8320-1Z6, G128100001, G128-100-001, G128100001, G128-100-001, 5985-00-112-4170, 00-112-4170, 5985001124170, 001124170
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 23, 1968 | 00-112-4170 | 05118 ( SWITCH, WAVEGUIDE ) |
REFERENCE DRAWINGS & PICTURES

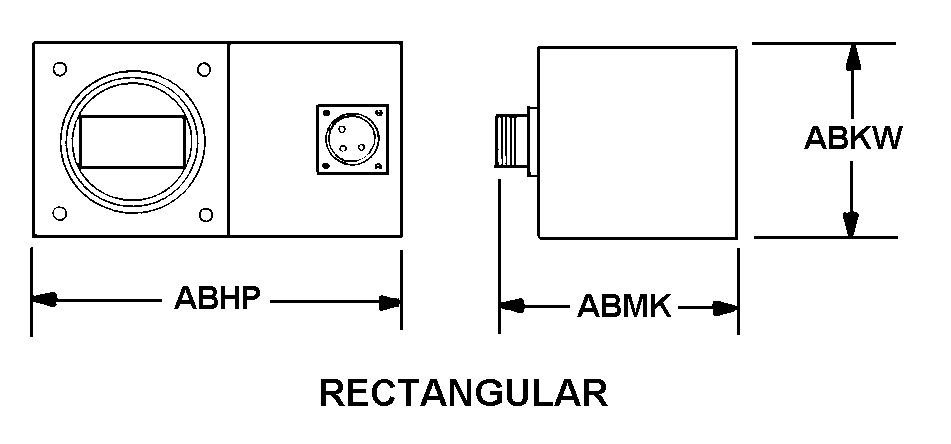

RECTANGULAR
Cross Reference | NSN 5985-00-112-4170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G128-100-001 | 0D0D0 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| MA8320-1Z6 | 96341 | COBHAM ADVANCED ELECTRONIC SOLUTIONSINC. |
| G128-100-001 | 96341 | COBHAM ADVANCED ELECTRONIC SOLUTIONSINC. |
| G128-100-001 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
Technical Data | NSN 5985-00-112-4170
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 1 RECEPTACLE, COAXIAL AND 1 RECTANGULAR FLANGE |
| SWITCHING TIME | 0.01 MICROSECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| WAVEGUIDE FLANGE TYPE | COVER |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.489 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.400 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | +10.0 TO +85.0 DEG CELSIUS |
| MAXIMUM OPERATING ALTITUDE RATING | 10000.0 FEET |
