Part Details | ANTENNA REFLECTOR
5985-00-146-2450 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Alternate Parts: 588221, 58822-1, FC7B14, FC-7B-14, 5985-00-146-2450, 00-146-2450, 5985001462450, 001462450
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 10, 1971 | 00-146-2450 | 00244 ( REFLECTOR, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

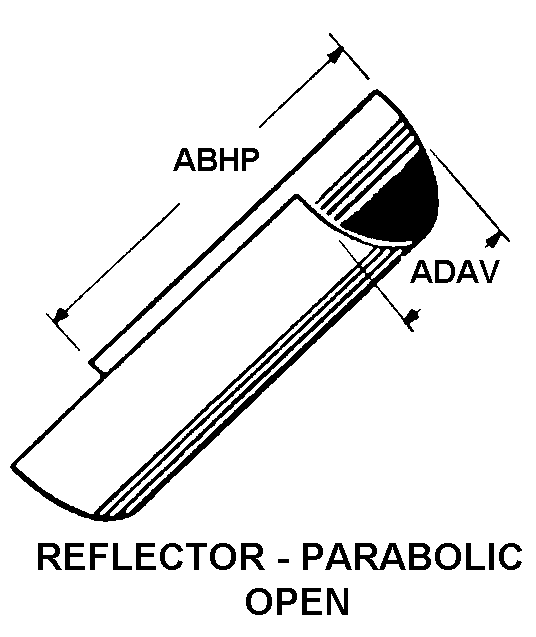

REFLECTOR-PARABOLIC, OPEN
Cross Reference | NSN 5985-00-146-2450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 58822-1 | 77646 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA AEROSPACE SYSTEMS SECTOR |
| FC-7B-14 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
Technical Data | NSN 5985-00-146-2450
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | LACQUER |
| STYLE DESIGNATOR | REFLECTOR-PARABOLIC, OPEN |
| OVERALL LENGTH | 12.500 INCHES MAXIMUM |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
