Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-153-7988 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 8020271072151, 802027107215-1, GS829DC2, SR2MINDL, SR-2MIN-D-L, 5985-00-153-7988, 00-153-7988, 5985001537988, 001537988
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 09, 1972 | 00-153-7988 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

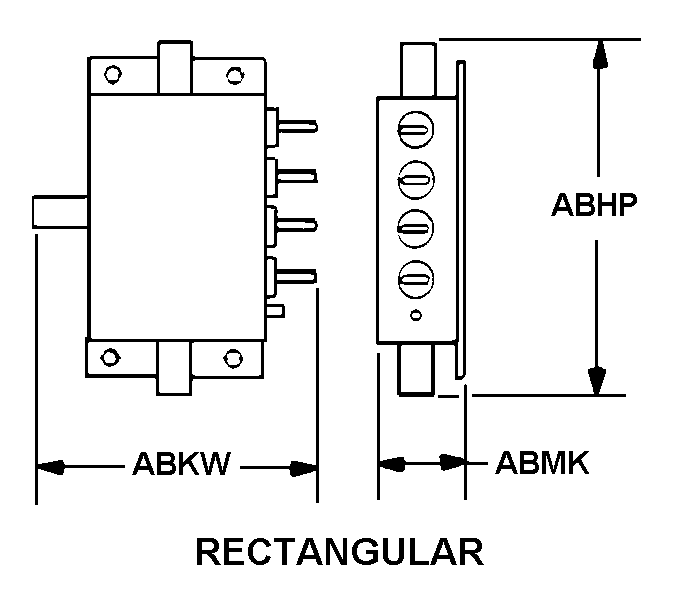

RECTANGULAR
Cross Reference | NSN 5985-00-153-7988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 802027107215-1 | 12255 | NAVY, UNITED STATES DEPARTMENT OFTHE |
| GS829DC2 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| SR-2MIN-D-L | 12598 | R L C ELECTRONICS, INC. |
Technical Data | NSN 5985-00-153-7988
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.14 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 20.0 MILLISECONDS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 2.805 INCHES NOMINAL |
| OVERALL HEIGHT | 1.343 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
