Part Details | ANTENNA REFLECTOR
5985-00-158-3204 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Alternate Parts: 3402411502, 34-024115-02, 3402411502, 34-024115-02, 5985-00-158-3204, 00-158-3204, 5985001583204, 001583204
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 26, 1973 | 00-158-3204 | 00244 ( REFLECTOR, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

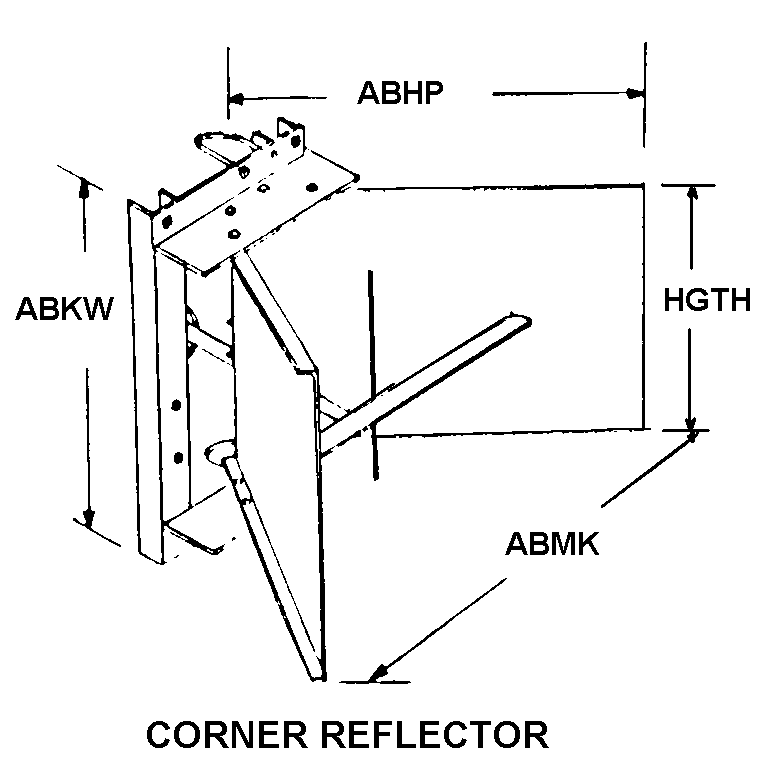

CORNER REFLECTOR
Cross Reference | NSN 5985-00-158-3204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 34-024115-02 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV ES DEFENSIVE SYSTEMS DIVISION |
| 34-024115-02 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
Technical Data | NSN 5985-00-158-3204
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE DIAMETER | 0.172 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.500 INCHES |
| STYLE DESIGNATOR | CORNER REFLECTOR |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| HEIGHT | 1.500 INCHES NOMINAL |
