Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-158-9410 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 94CSA12206, 94CSA1-2-206, 40P219441, SA9061S1, 5985-00-158-9410, 00-158-9410, 5985001589410, 001589410
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 26, 1973 | 00-158-9410 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

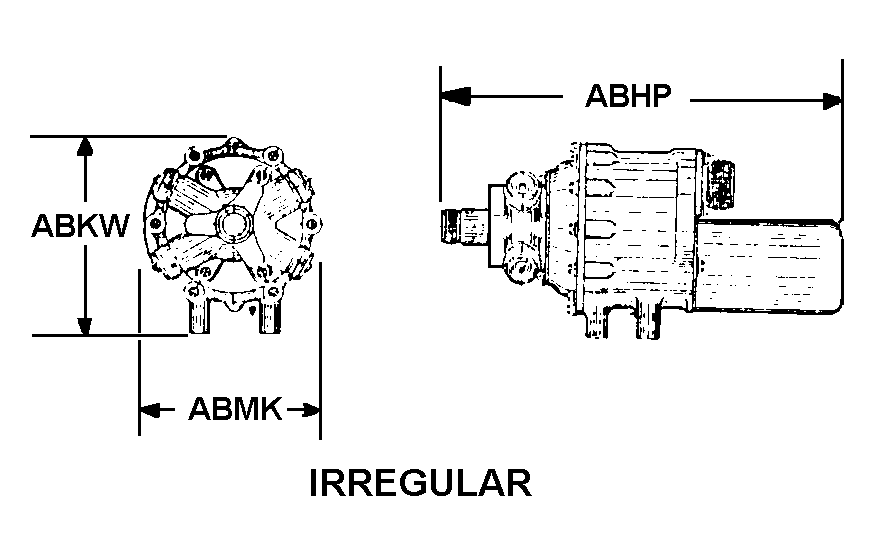

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-158-9410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 94CSA1-2-206 | 94375 | AUTOMATIC CONNECTOR |
| 40P219441 | 98738 | HERLEY CHICAGODBA STEWART WARNER ELECTRONICS |
| SA9061S1 | 24022 | TELEDYNE WIRELESS, LLCDBA TELEDYNE MICROWAVE SOLUTIONS |
Technical Data | NSN 5985-00-158-9410
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 MAXIMUM |
| RF MAXIMUM VOLTAGE RATING | 400.0 VOLTS RMS |
| SWITCH TYPE | TRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 3 PLUG, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 50.0 MILLISECONDS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 4.156 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | -54.0 TO +100.0 DEG CELSIUS |
