Part Details | VARIABLE ATTENUATOR
5985-00-160-1272 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: A2614, 5985-00-160-1272, 00-160-1272, 5985001601272, 001601272
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | JUL 11, 1971 | 00-160-1272 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

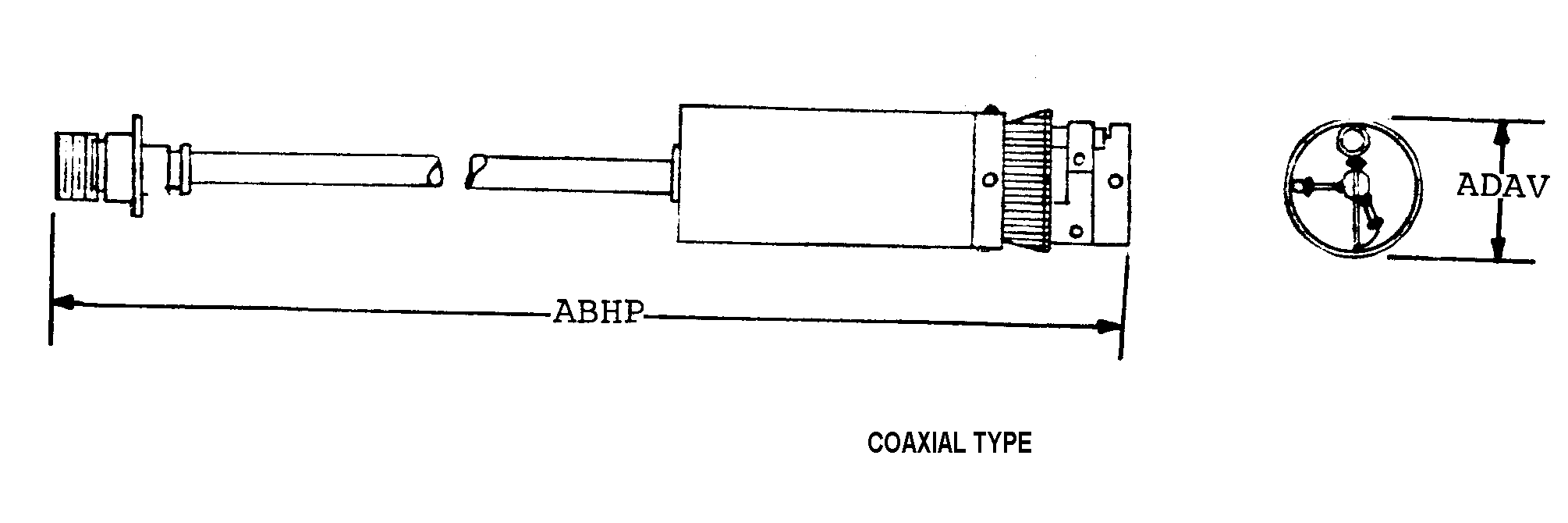

COAXIAL TYPE

Cross Reference | NSN 5985-00-160-1272
Part Number | Cage Code | Manufacturer |
---|---|---|
A2614 | 99872 | ENTRON INDUSTRIES LIMITEDPARTNERSHIP |
Technical Data | NSN 5985-00-160-1272
Characteristic | Specifications |
---|---|
APPLICATION DESIGN | TRANSMISSION LINE |
BODY STYLE | COAXIAL TYPE |
ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 ELECTRONIC, CURRENT CONTROLLED |
FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES AND RELATED EQUIP. |
