Part Details | ELECTRICAL DUMMY LOAD
5985-00-164-1551 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Alternate Parts: PST3, PST-3, A3KT35, 5348253, 534825-3, 5348252, 534825-2, 7051, 5985-00-164-1551, 00-164-1551, 5985001641551, 001641551
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 07, 1973 | 00-164-1551 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

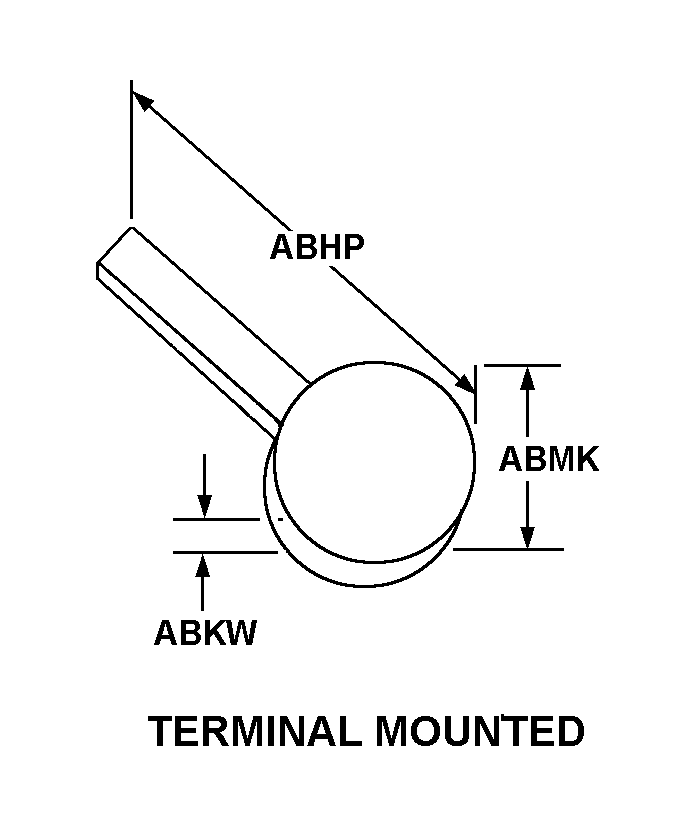

TERMINAL MOUNTED
Cross Reference | NSN 5985-00-164-1551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PST-3 | 64537 | AEROFLEX CONTROL COMPONENTS, INC.DIV AEROFLEX CONTROL COMPONENTS |
| A3KT35 | 64537 | AEROFLEX CONTROL COMPONENTS, INC.DIV AEROFLEX CONTROL COMPONENTS |
| 534825-3 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 534825-2 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 7051 | 21845 | SOLITRON DEVICES, INC. |
Technical Data | NSN 5985-00-164-1551
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TERMINAL MOUNTED |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.246 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OVERALL WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| FREQUENCY RANGE RATING | +0.000 TO +12.400 GIGAHERTZ |
| POWER RATING | 1.000 WATTS AVERAGE |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| VOLTAGE STANDING WAVE RATIO | B1.20$$B1.35 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | +0.000 TO +8.000 GIGAHERTZ AND +8.000 TO +12.400 GIGAHERTZ |
| TERMINATION TYPE | BINDING POST |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| SPECIAL FEATURES | TAB,CASE,AND GROUND CONTACTS GOLD PLATED |
| RF CONNECTOR CHANGING FEATURE | NOT INCLUDED |
| FRAGILITY FACTOR | MODERATELY DELICATE |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND LOCATION | TERMINALS GOLD AND EXTERNAL SURFACES GOLD |
| FSC APPLICATION DATA | ANTENNAS,WAVDEGUIDES,AND RELATED EQUIPMENT |
