Part Details | VARIABLE ATTENUATOR
5985-00-165-3128 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 252424, SPEC 12380, SK358, SK-358, 130C1A1600, 130C1A1-600, 5985-00-165-3128, 00-165-3128, 5985001653128, 001653128
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 01, 1972 | 00-165-3128 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL W/SIDE TERMINALS

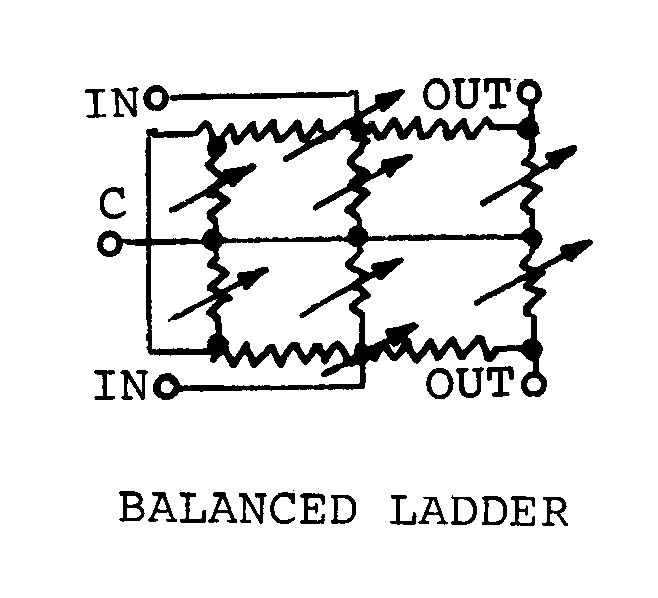

BALANCED LADDER
Cross Reference | NSN 5985-00-165-3128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 252424 | 02230 | ELECTRONICS OF CLEARFIELD INC |
| SPEC 12380 | 28057 | SHALLCO, INC. |
| SK-358 | 28057 | SHALLCO, INC. |
| 130C1A1-600 | 28057 | SHALLCO, INC. |
Technical Data | NSN 5985-00-165-3128
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |
| SCHEMATIC DIAGRAM DESIGNATOR | BALANCED LADDER |
| FREQUENCY RANGE | 7.900 GIGAHERTZ MINIMUM AND 8.400 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 600.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.05 |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P30.0 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 30 |
| ATTENUATION PER STEP IN DECIBELS | 1.0 |
| BODY STYLE | CYLINDRICAL W/SIDE TERMINALS |
| OVERALL LENGTH | 3.156 INCHES NOMINAL |
| BODY DIAMETER | 1.844 INCHES NOMINAL |
| BODY LENGTH | 2.063 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND |
| SHAFT DIAMETER | 0.249 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| SHAFT LENGTH | 1.094 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BUSHING |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
