Part Details | FIXED ATTENUATOR
5985-00-171-5084 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: FS761215, FS761215, 2280773, 228077-3, 2280773, 228077-3, 5985-00-171-5084, 00-171-5084, 5985001715084, 001715084
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 18, 1973 | 00-171-5084 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

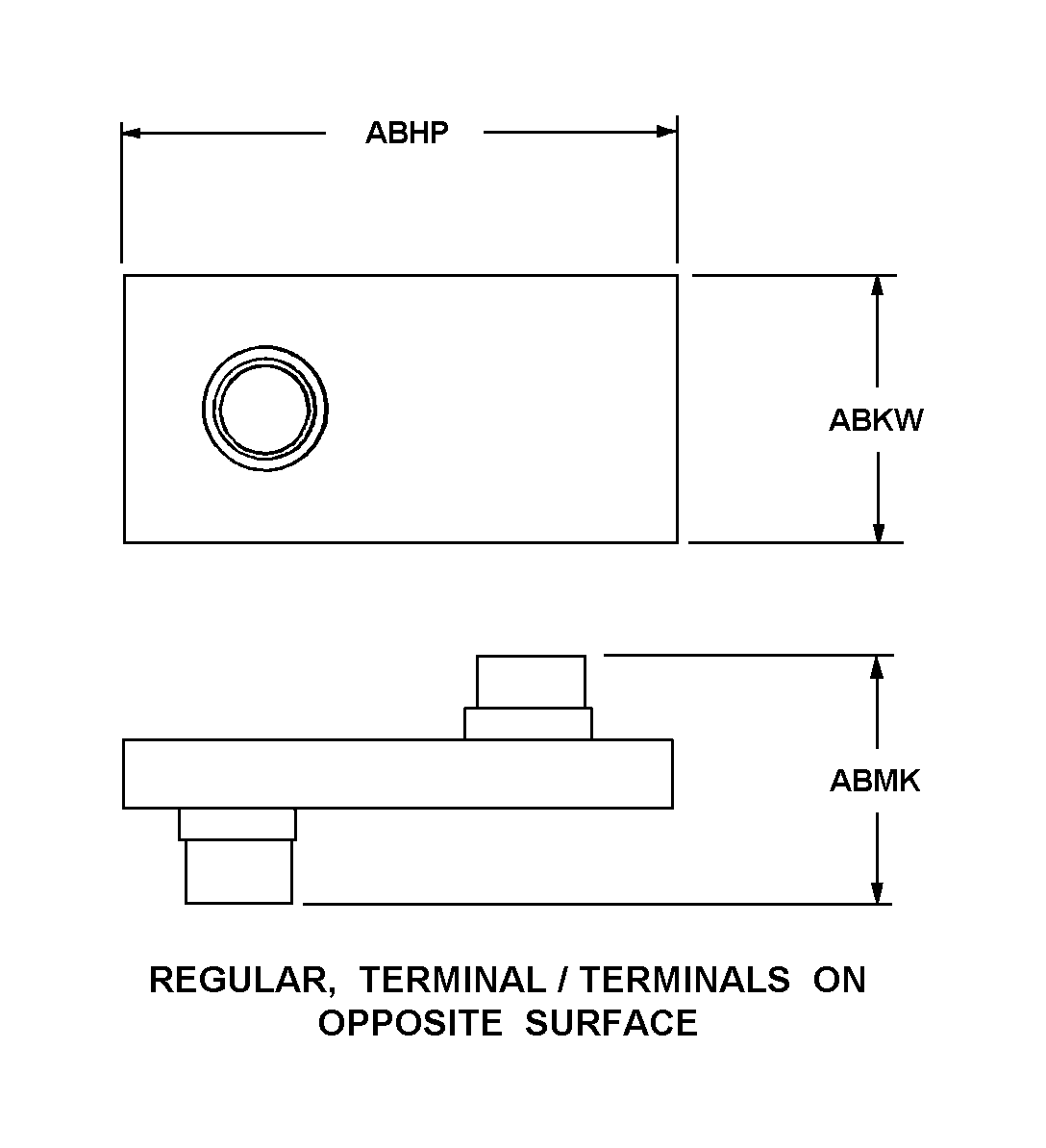

RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES
Cross Reference | NSN 5985-00-171-5084
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FS761215 | 26629 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN MISSILES AND |
| FS761215 | 50101 | MICROSEMI CORP-MASSACHUSETTSDBA MICROSEMI-LOWELL |
| 228077-3 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| 228077-3 | 55097 | SHILOH INDUSTRIES, INC. |
Technical Data | NSN 5985-00-171-5084
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 700.000 MEGAHERTZ MINIMUM AND 900.000 MEGAHERTZ MAXIMUM |
| RF SIGNAL ATTENUATION IN DECIBELS | 20.0 |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
| BODY STYLE | RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 0.532 INCHES NOMINAL |
| OVERALL HEIGHT | 0.132 INCHES NOMINAL |
| OVERALL WIDTH | 0.308 INCHES NOMINAL |
| BODY MATERIAL | METAL |
| BODY SURFACE TREATMENT | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| MOUNTING METHOD | THREADED HOLE |
| MOUNTING HOLE/STUD QUANTITY | 2 |
| MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.060-80 UNF |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.462 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.176 INCHES NOMINAL |
