Part Details | WAVEGUIDE SWITCH
5985-00-177-7119 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 33D20500, 33D20500, 9270381, 927038-1, 5985-00-177-7119, 00-177-7119, 5985001777119, 001777119
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 08, 1971 | 00-177-7119 | 05118 ( SWITCH, WAVEGUIDE ) |
REFERENCE DRAWINGS & PICTURES

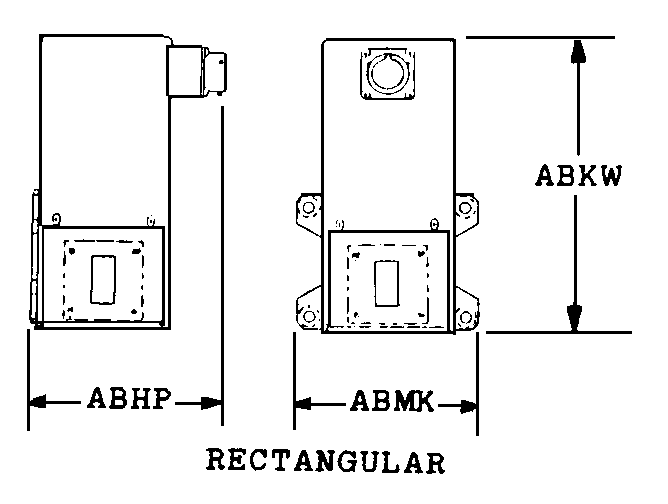

RECTANGULAR
Cross Reference | NSN 5985-00-177-7119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33D20500 | 50140 | K&L MICROWAVE, INC. |
| 33D20500 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
| 927038-1 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5985-00-177-7119
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.5 AC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 115.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| SWITCHING TIME | 100.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| WAVEGUIDE FLANGE TYPE | COVER |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 10.350 INCHES NOMINAL |
| OVERALL HEIGHT | 3.820 INCHES MAXIMUM |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| OPERATING TEMP RANGE | -54.0 TO +95.0 DEG CELSIUS |
