Part Details | ANTENNA SUPPORT BASE
5985-00-185-3568
Alternate Parts: 2158518G001, 5985-00-185-3568, 00-185-3568, 5985001853568, 001853568
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 22, 1971 | 00-185-3568 | 02843 ( BASE, ANTENNA SUPPORT ) |
REFERENCE DRAWINGS & PICTURES

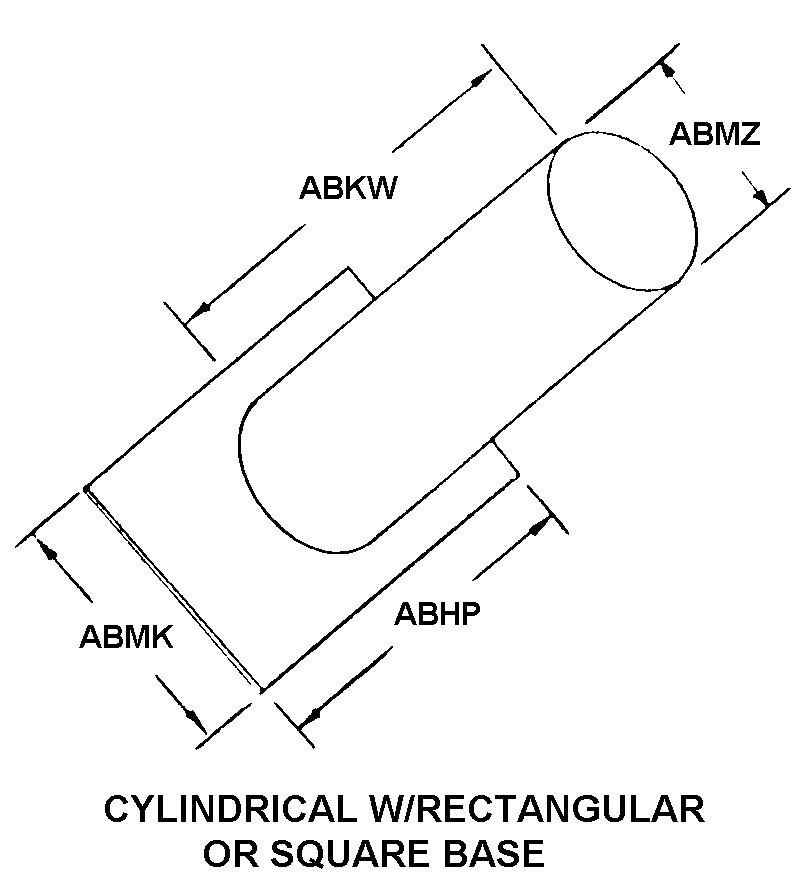

CYLINDRICAL W/RECTANGULAR OR SQUARE BASE
Cross Reference | NSN 5985-00-185-3568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2158518G001 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
Technical Data | NSN 5985-00-185-3568
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING METHOD | THREADED BASE |
| MOUNTING FACILITY QUANTITY | 1 |
| THREAD CLASS | 3B |
| BASIC SHAPE STYLE | CYLINDRICAL W/RECTANGULAR OR SQUARE BASE |
| OVERALL LENGTH | 3.550 INCHES NOMINAL |
| OVERALL HEIGHT | 6.300 INCHES NOMINAL |
| OVERALL WIDTH | 3.550 INCHES NOMINAL |
| DIAMETER | 2.770 INCHES NOMINAL |
| SPECIAL FEATURES | CHROMATE CONVERSION COATING,TYPE 1,GRADE C,CLASS 3,COLOR YELLOW IRIDESCENT PER MIL-C-5541 AND PAINT PER FINISH P513,MIL-F-14072 PRIMER WITH SEMIGLOSS ENAMEL PER TT-E-529,CLASS B,COLOR 27875,PER FED-STD 595, PITCH DIA 2.296 NOMINAL |
