Part Details | ELECTRICAL DUMMY LOAD
5985-00-209-9895 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Alternate Parts: 6243611002, 624-3611-002, 5985-00-209-9895, 00-209-9895, 5985002099895, 002099895
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 18, 1973 | 00-209-9895 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

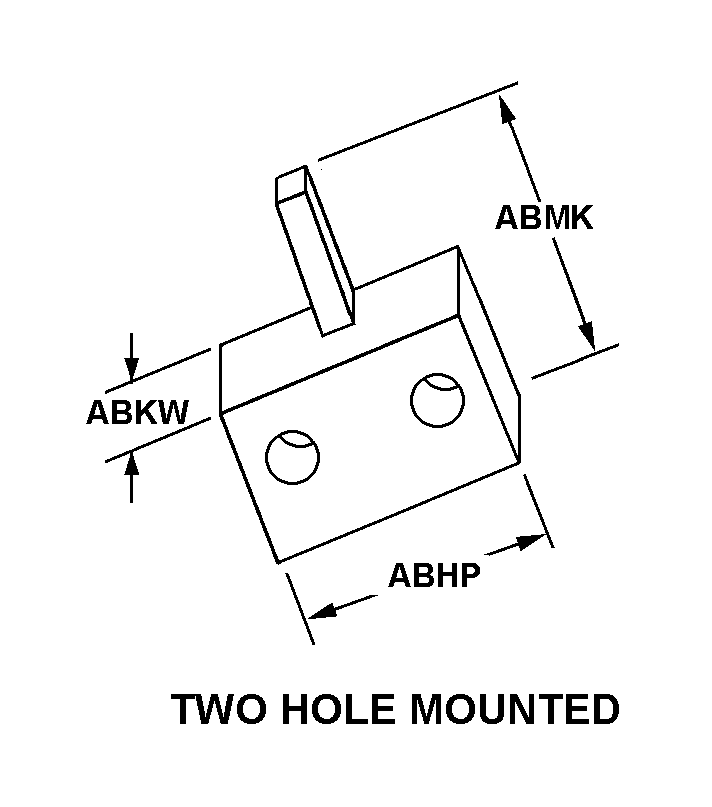

TWO HOLE MOUNTED
Cross Reference | NSN 5985-00-209-9895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 624-3611-002 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5985-00-209-9895
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TWO HOLE MOUNTED |
| OVERALL LENGTH | 0.455 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| RF CONNECTOR CHANGING FEATURE | NOT INCLUDED |
| FRAGILITY FACTOR | MODERATELY RUGGED |
| SUPPLEMENTARY FEATURES | M55 TO P100 DEG C TESTING RANGE |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
