Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-220-3428 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: DK137, 1118, 1-118, K800001, K80-0001, 5985-00-220-3428, 00-220-3428, 5985002203428, 002203428
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 29, 1969 | 00-220-3428 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

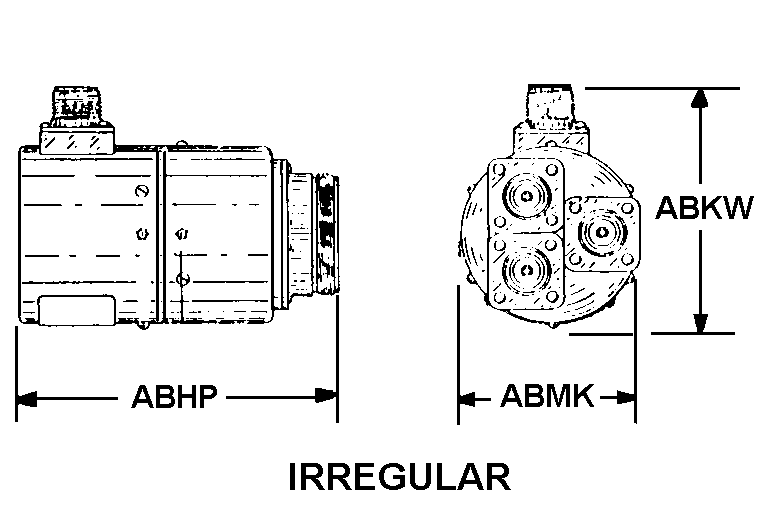

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-220-3428
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DK137 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 1-118 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| K80-0001 | 14304 | HARRIS CORPORATIONDBA HARRIS RF COMMUNICATION |
Technical Data | NSN 5985-00-220-3428
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 15.0 MILLISECONDS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 3.844 INCHES NOMINAL |
| OVERALL HEIGHT | 1.156 INCHES NOMINAL |
| OVERALL WIDTH | 3.188 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.136 INCHES NOMINAL |
| OPERATING TEMP RANGE | -55.0 TO +75.0 DEG CELSIUS |
