Part Details | ANTENNA REFLECTOR
5985-00-224-5249 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Alternate Parts: N5042, N5-042, MILR12887TYPEAS5, SCD40067, 5985-00-224-5249, 00-224-5249, 5985002245249, 002245249
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-224-5249 | 00244 ( REFLECTOR, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

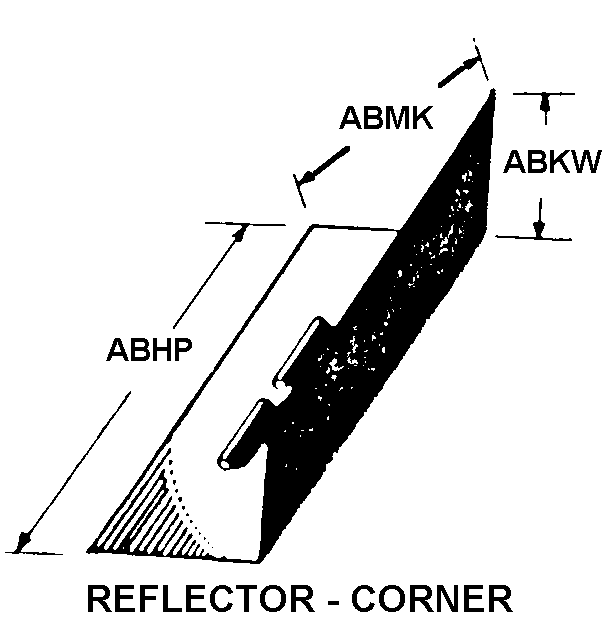

REFLECTOR-CORNER
Cross Reference | NSN 5985-00-224-5249
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| N5-042 | 20950 | ESPEY MFG. & ELECTRONICS CORP. |
| MILR12887TYPEAS5 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| SCD40067 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5985-00-224-5249
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MOUNTING METHOD | CLAMP |
| MOUNTING FACILITY QUANTITY | 2 |
| STYLE DESIGNATOR | REFLECTOR-CORNER |
| OVERALL LENGTH | 1.917 FEET NOMINAL |
| OVERALL HEIGHT | 2.500 FEET NOMINAL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| FSC APPLICATION DATA | RADIO SET |
