Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-227-4229 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 580R796H05, 580R796H02, 5985-00-227-4229, 00-227-4229, 5985002274229, 002274229
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 17, 1973 | 00-227-4229 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

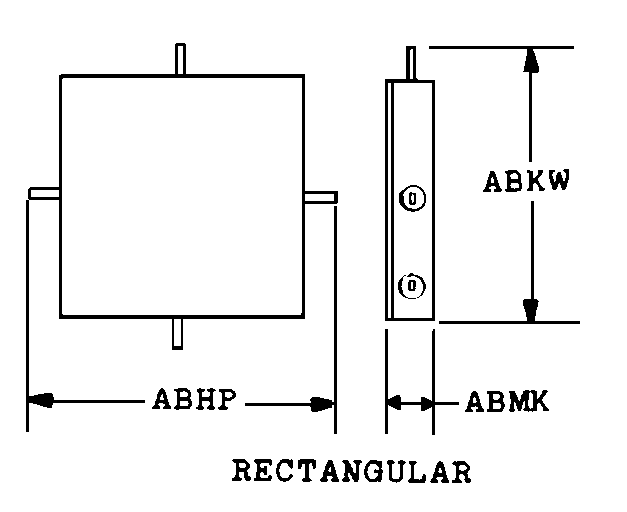

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5985-00-227-4229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 580R796H05 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 580R796H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5985-00-227-4229
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | SOLID STATE |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.06 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 26.5 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 6 CABLE, COAXIAL |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.220 INCHES NOMINAL |
| OVERALL HEIGHT | 0.880 INCHES NOMINAL |
| OVERALL WIDTH | 0.400 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.094 INCHES NOMINAL |
| SPECIAL FEATURES | RELAY COAXIAL ASSEMBLY |
