Part Details | ANTENNA REFLECTOR
5985-00-228-2502 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Alternate Parts: 4462591, 446259-1, 5985-00-228-2502, 00-228-2502, 5985002282502, 002282502
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 14, 1969 | 00-228-2502 | 00244 ( REFLECTOR, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

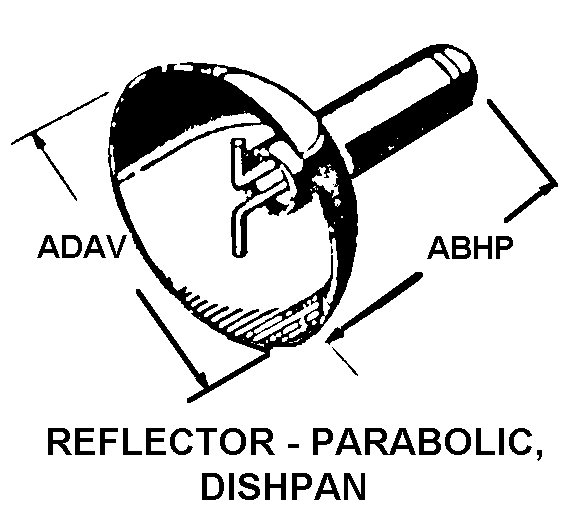

REFLECTOR-PARABOLIC, DISHPAN
Cross Reference | NSN 5985-00-228-2502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 446259-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5985-00-228-2502
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | REFLECTOR-PARABOLIC, DISHPAN |
| OVERALL LENGTH | 3.635 INCHES NOMINAL |
| OVERALL DIAMETER | 19.997 INCHES NOMINAL |
| FSC APPLICATION DATA | RADAR SET,GUNNERY FIRE CONTROL,AIRCRAFT |
