Part Details | WAVEGUIDE ASSEMBLY
5985-00-231-9697 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Alternate Parts: G128330001, G128-330-001, G128330001, G128-330-001, G5185200, G5185-200, 5985-00-231-9697, 00-231-9697, 5985002319697, 002319697
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 19, 1970 | 00-231-9697 | 00305 ( WAVEGUIDE ASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

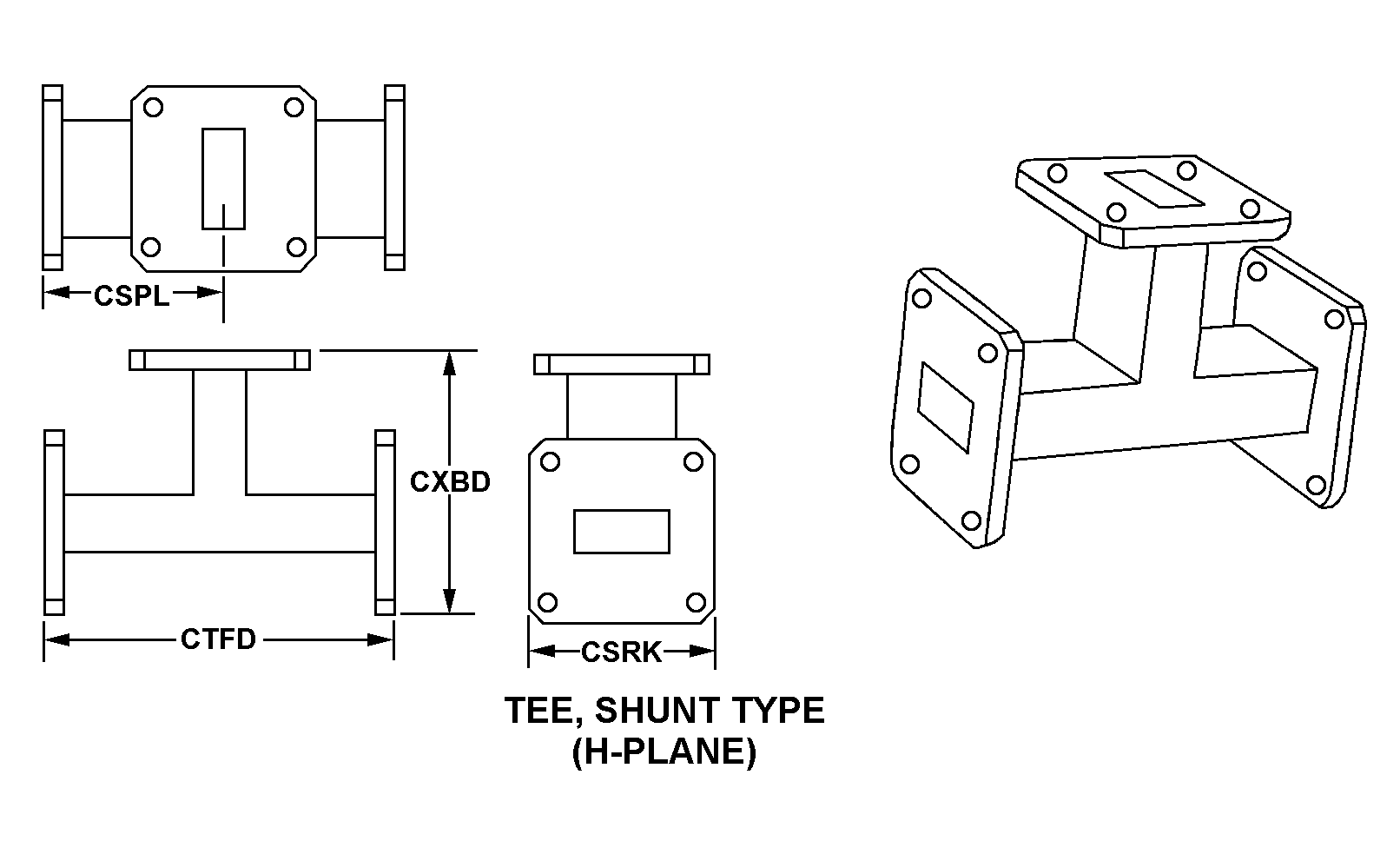

INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR
TEE, SHUNT TYPE
Cross Reference | NSN 5985-00-231-9697
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G128-330-001 | 0D0D0 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| G128-330-001 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
| G5185-200 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
Technical Data | NSN 5985-00-231-9697
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TEE, SHUNT TYPE |
| WAVEGUIDE LONGER OFFSET DISTANCE | 2.070 INCHES NOMINAL |
| WAVEGUIDE WIDTH | 1.313 INCHES NOMINAL |
| WAVEGUIDE LENGTH | 4.140 INCHES NOMINAL |
| WAVEGUIDE HEIGHT | 2.600 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 0.702 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 0.622 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.311 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.391 INCHES NOMINAL |
| FLANGE QUANTITY | 3 |
| VOLTAGE STANDING WAVE RATIO | 1.20 |
