Part Details | FIXED ATTENUATOR
5985-00-238-9435 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: B2345020000, B234502-0000, 2345020000, 234502-0000, 192396, 192-396, CN1288U, CN1288/U, ABJ76, 18014453, 1801445-3, 512171003, 51217-1003, 1001FP503N, 1001FP50-3N, FP503N, FP50-3N, FP503DBBNC, FP50-3DBBNC, FP503DB, FP50-3DB, 5985-00-238-9435, 00-238-9435, 5985002389435, 002389435
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 05, 1969 | 00-238-9435 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES
C
Cross Reference | NSN 5985-00-238-9435
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B234502-0000 | 30184 | BUTLER NATIONAL CORP |
| 234502-0000 | 30184 | BUTLER NATIONAL CORP |
| 192-396 | 90073 | CMC ELECTRONICS INC |
| CN1288/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| ABJ76 | 00929 | MICROLAB/FXR |
| 1801445-3 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVAL AND MARINE SYSTEMS |
| 51217-1003 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 1001FP50-3N | 23042 | TRILITHIC, INC. |
| FP50-3N | 23042 | TRILITHIC, INC. |
| FP50-3DBBNC | 23042 | TRILITHIC, INC. |
| FP50-3DB | 23042 | TRILITHIC, INC. |
Technical Data | NSN 5985-00-238-9435
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |

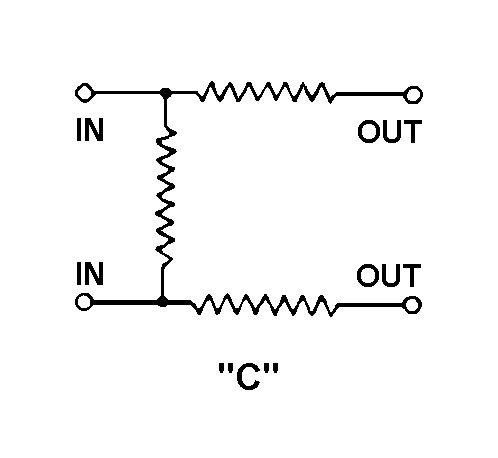

| SCHEMATIC DIAGRAM DESIGNATOR | "C" |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| RF SIGNAL ATTENUATION IN DECIBELS | 3.0 |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR |
| MOUNTING METHOD | TERMINAL |
