Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-239-7179 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: C001050, 001050, TS200C, 5985-00-239-7179, 00-239-7179, 5985002397179, 002397179
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 05, 1969 | 00-239-7179 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

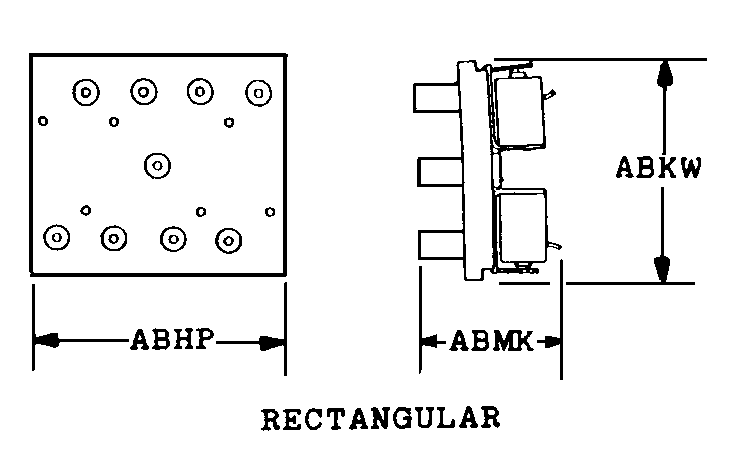

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5985-00-239-7179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C001050 | 19156 | MOOG INC.DIV MOOG AIRCRAFT, SALT LAKE |
| 001050 | 19156 | MOOG INC.DIV MOOG AIRCRAFT, SALT LAKE |
| TS200C | 04423 | TELONIC BERKELEY, INC. |
Technical Data | NSN 5985-00-239-7179
| Characteristic | Specifications |
|---|---|
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 7 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 3.313 INCHES MINIMUM AND 3.437 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.500 INCHES NOMINAL |
| OPERATING TEMP RANGE | -55.0 TO +85.0 DEG CELSIUS |
