Part Details | FIXED ATTENUATOR
5985-00-255-3883 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: D165812N, 89N, F15465, 89N, 89N, 5985-00-255-3883, 00-255-3883, 5985002553883, 002553883
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-255-3883 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

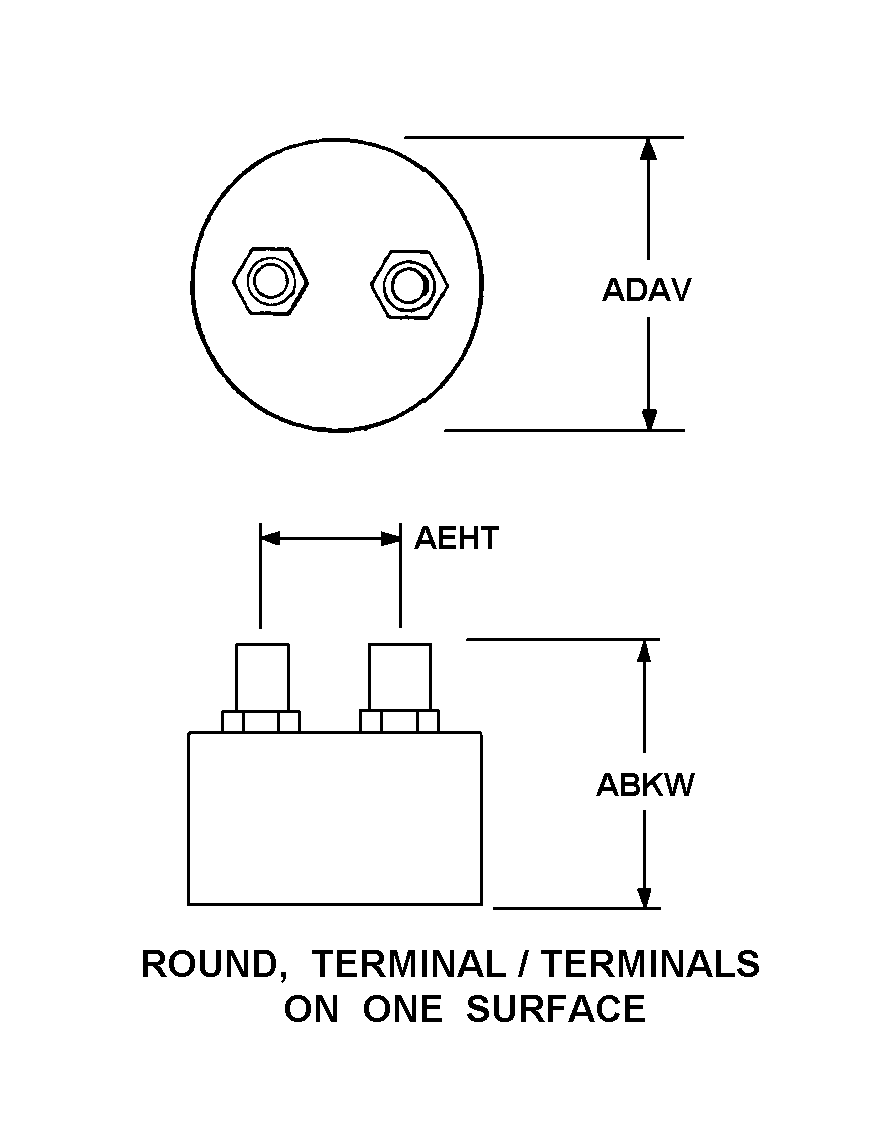

ROUND, TERMINAL/TERMINALS ON ONE SURFACE

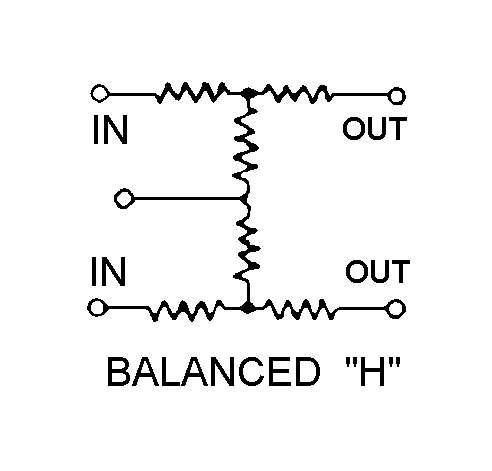

BALANCED "H" BRIDGED
Cross Reference | NSN 5985-00-255-3883
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D165812N | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 89N | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| F15465 | 96344 | CODALEX LTD |
| 89N | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| 89N | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
Technical Data | NSN 5985-00-255-3883
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| SCHEMATIC DIAGRAM DESIGNATOR | BALANCED "H" BRIDGED |
| INPUT IMPEDANCE RATING IN OHMS | 600.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 600.0 |
| RF SIGNAL ATTENUATION IN DECIBELS | 3.0 |
| ATTENUATION ACCURACY IN DECIBELS | M0.06/P0.06 |
| POWER RATING | 150.0 MILLIWATTS AVERAGE |
| BODY STYLE | ROUND, TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL HEIGHT | 0.719 INCHES NOMINAL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.750 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| TERMINAL TYPE AND QUANTITY | 6 PIN |
| MOUNTING METHOD | TERMINAL |
