Part Details | ELECTRICAL DUMMY LOAD
5985-00-327-3121 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Alternate Parts: 2575709, 2575709, DL12231, 5985-00-327-3121, 00-327-3121, 5985003273121, 003273121
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 03, 1973 | 00-327-3121 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

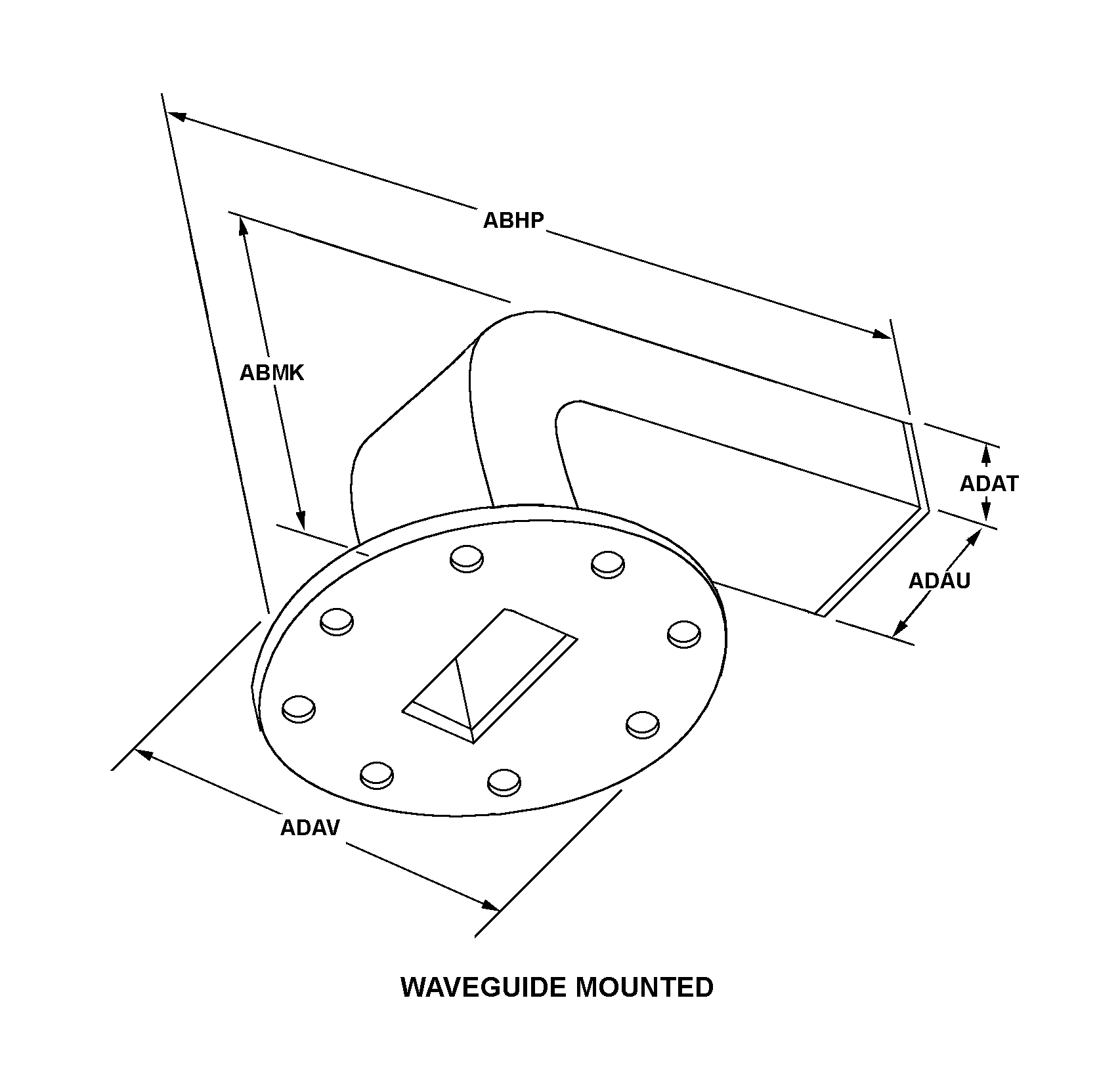

WAVEGUIDE MOUNTED
Cross Reference | NSN 5985-00-327-3121
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2575709 | 01456 | MICROWAVE DEVELOPMENT LABORATORIES,INC. |
| 2575709 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| DL12231 | 21845 | SOLITRON DEVICES, INC. |
Technical Data | NSN 5985-00-327-3121
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WAVEGUIDE MOUNTED |
| OVERALL LENGTH | 3.625 INCHES MAXIMUM |
| OVERALL WIDTH | 1.000 INCHES MAXIMUM |
| POWER RATING | 15.000 WATTS AVERAGE |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 70.0 |
| VOLTAGE STANDING WAVE RATIO | 1.15 |
| TERMINATION TYPE | WAVEGUIDE FLANGE |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
