Part Details | VARIABLE ATTENUATOR
5985-00-434-2911 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 21325131, 2132513-1, 21325131, 2132513-1, C60933, 5985-00-434-2911, 00-434-2911, 5985004342911, 004342911
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 17, 1974 | 00-434-2911 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

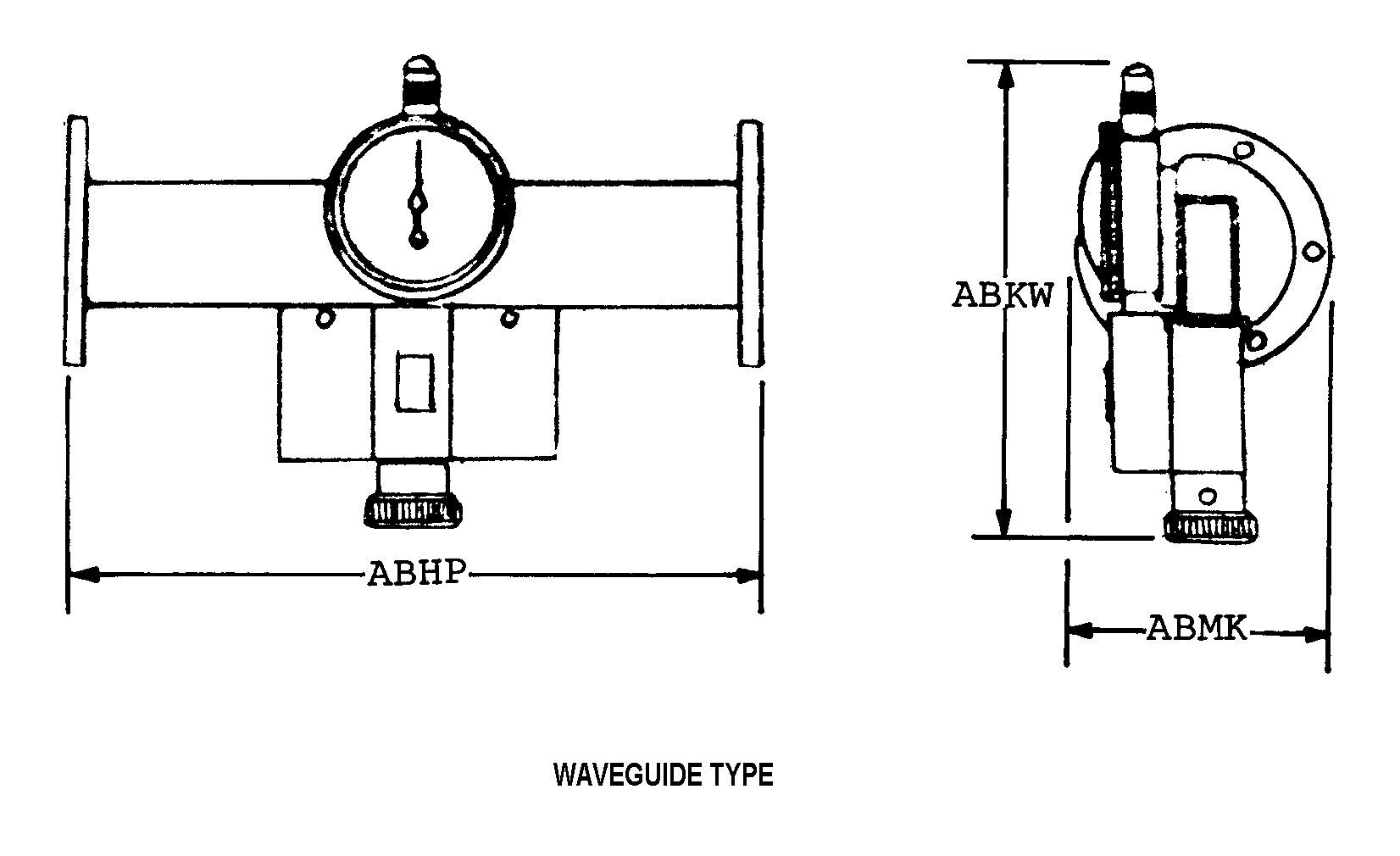

WAVEGUIDE TYPE
Cross Reference | NSN 5985-00-434-2911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2132513-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| 2132513-1 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
| C60933 | 00443 | WAVELINE, INCORPORATED |
Technical Data | NSN 5985-00-434-2911
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 8.200 GIGAHERTZ MINIMUM AND 12.4000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.15 |
| POWER RATING | 10.0 WATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.0 |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P60.0 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | WAVEGUIDE TYPE |
| OVERALL LENGTH | 9.880 INCHES NOMINAL |
| OVERALL HEIGHT | 6.530 INCHES NOMINAL |
| OVERALL WIDTH | 5.360 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND |
| SHAFT DIAMETER | 0.190 INCHES NOMINAL |
| SHAFT LENGTH | 0.440 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-135/U |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.750 INCHES NOMINAL |
| SCALE LINEARITY | NONLINEAR |
| WAVEGUIDE FLANGE TYPE | COVER |
