Part Details | FIXED ATTENUATOR
5985-00-449-9239 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: 2132514, 21325141, 2132514-1, 61711, 602, 5985-00-449-9239, 00-449-9239, 5985004499239, 004499239
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 30, 1974 | 00-449-9239 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

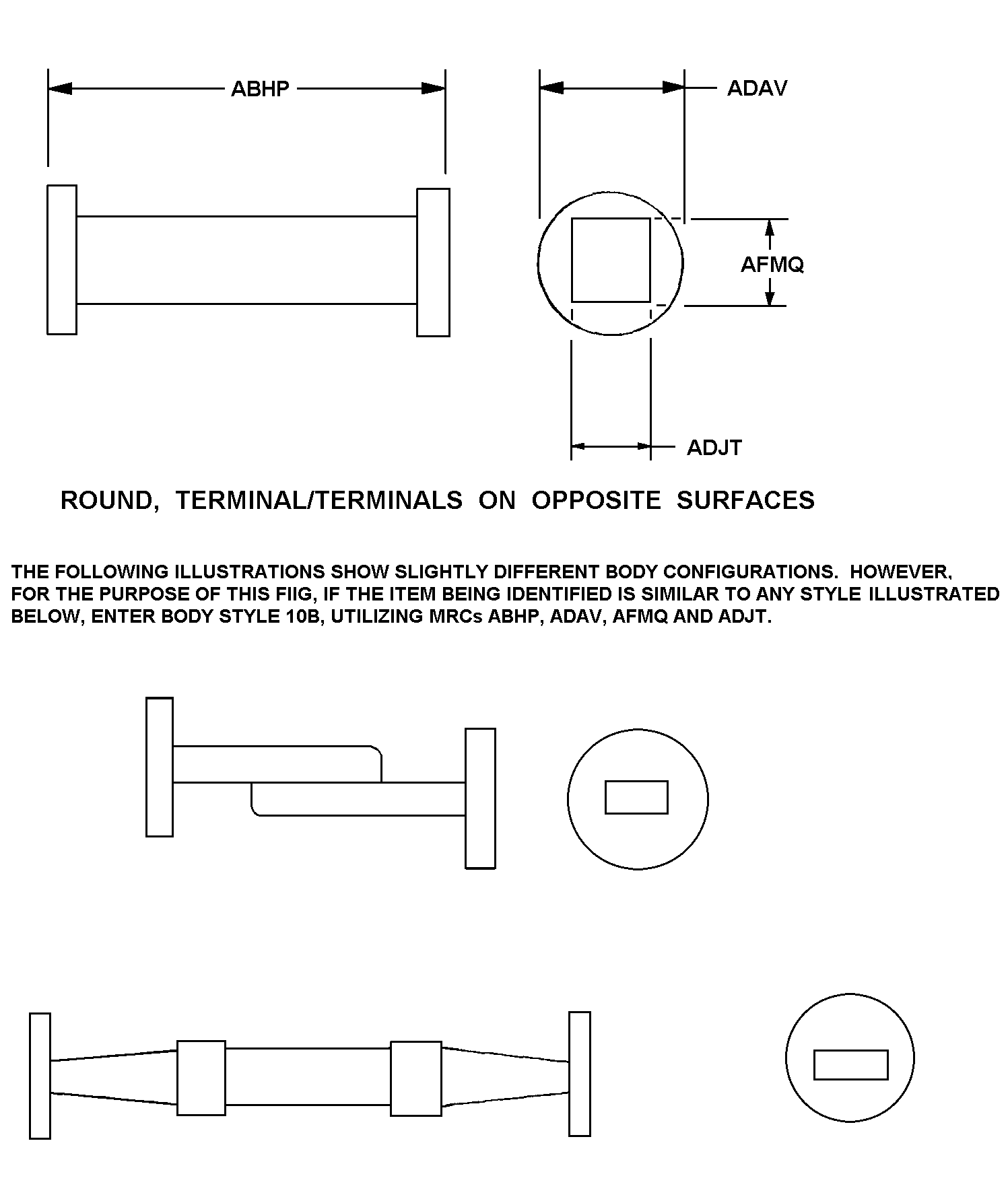

ROUND,TERMINAL/TERMINALS ON OPPOSITE SURFACES
Cross Reference | NSN 5985-00-449-9239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2132514 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| 2132514-1 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
| 61711 | 00443 | WAVELINE, INCORPORATED |
| 602 | 00443 | WAVELINE, INCORPORATED |
Technical Data | NSN 5985-00-449-9239
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| FREQUENCY RANGE | 8.200 GIGAHERTZ MINIMUM AND 12.400 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.15 |
| RF SIGNAL ATTENUATION IN DECIBELS | 30.0 |
| ATTENUATION ACCURACY IN DECIBELS | M0.50/P0.50 |
| POWER RATING | 15.0 WATTS AVERAGE AND 30.0 WATTS PEAK |
| OPERATING TEMP RANGE | +0.0 TO +71.0 DEG CELSIUS |
| BODY STYLE | ROUND,TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 9.880 INCHES NOMINAL |
| OVERALL DIAMETER | 2.370 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-135/U |
| WAVEGUIDE FLANGE TYPE | COVER |
| MOUNTING METHOD | TERMINAL W/MOUNTING HOLES |
| MOUNTING HOLE/STUD QUANTITY | 4 |
