Part Details | ELECTRICAL CLAMP
5999-00-186-3976 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: HJ591B, SCB176514, 201068PT2, 5999-00-186-3976, 00-186-3976, 5999001863976, 001863976
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-186-3976 | 00865 ( CLAMP, ELECTRICAL ) |

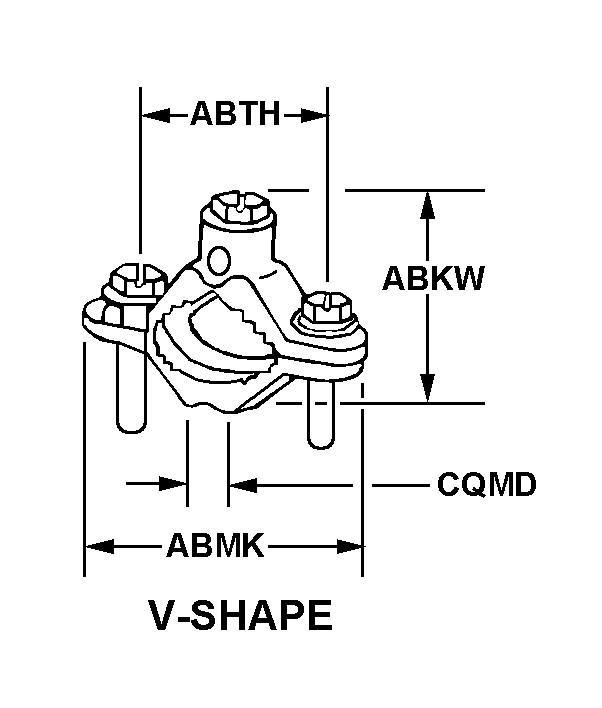

REFERENCE DRAWINGS & PICTURES
V-SHAPE
Cross Reference | NSN 5999-00-186-3976
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HJ591B | 73616 | COPPERWELD MARKETING AND SALES CO |
| SCB176514 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| 201068PT2 | 71313 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5999-00-186-3976
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | V-SHAPE |
| OVERALL HEIGHT | 1.690 INCHES NOMINAL |
| OVERALL WIDTH | 0.940 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.600 INCHES NOMINAL |
| MOUNTING METHOD | COMPRESSION |
| MOUNTING DEVICE QUANTITY | 1 |
| CONDUCTOR ACCOMMODATION QUANTITY | 1 |
