Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-200-4383 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 4806104562, 4806-104562, 5999-00-200-4383, 00-200-4383, 5999002004383, 002004383
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 21, 1973 | 00-200-4383 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

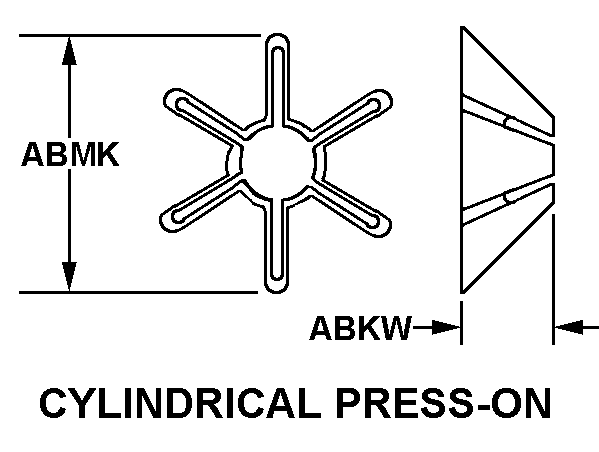

CYLINDRICAL PRESS-ON
Cross Reference | NSN 5999-00-200-4383
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4806-104562 | 89536 | FLUKE CORPORATION |
Technical Data | NSN 5999-00-200-4383
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CYLINDRICAL PRESS-ON |
| OVERALL HEIGHT | 0.4075 INCHES MINIMUM AND 0.4675 INCHES MAXIMUM |
| OVERALL WIDTH | 1.230 INCHES MINIMUM AND 1.290 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY 175 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-81021 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | OXIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-495 MIL SPEC SINGLE TREATMENT RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 1 |
