Part Details | AUTOMOTIVE DIRECTIONAL SIGNAL LIGHT CONTROL
6220-01-376-3676 An item which, when manually actuated, completes, interrupts, or changes the connections in the electrical circuit to control the operation of the directional signal lights on an automotive vehicle. It may include flasher mechanism.
Alternate Parts: 12417597, 202.153, E003036, E-003-036, 12417597, 6220-01-376-3676, 01-376-3676, 6220013763676, 013763676
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUN 02, 1993 | 01-376-3676 | 06106 ( CONTROL, DIRECTIONAL SIGNAL LIGHT, AUTOMOTIVE ) |

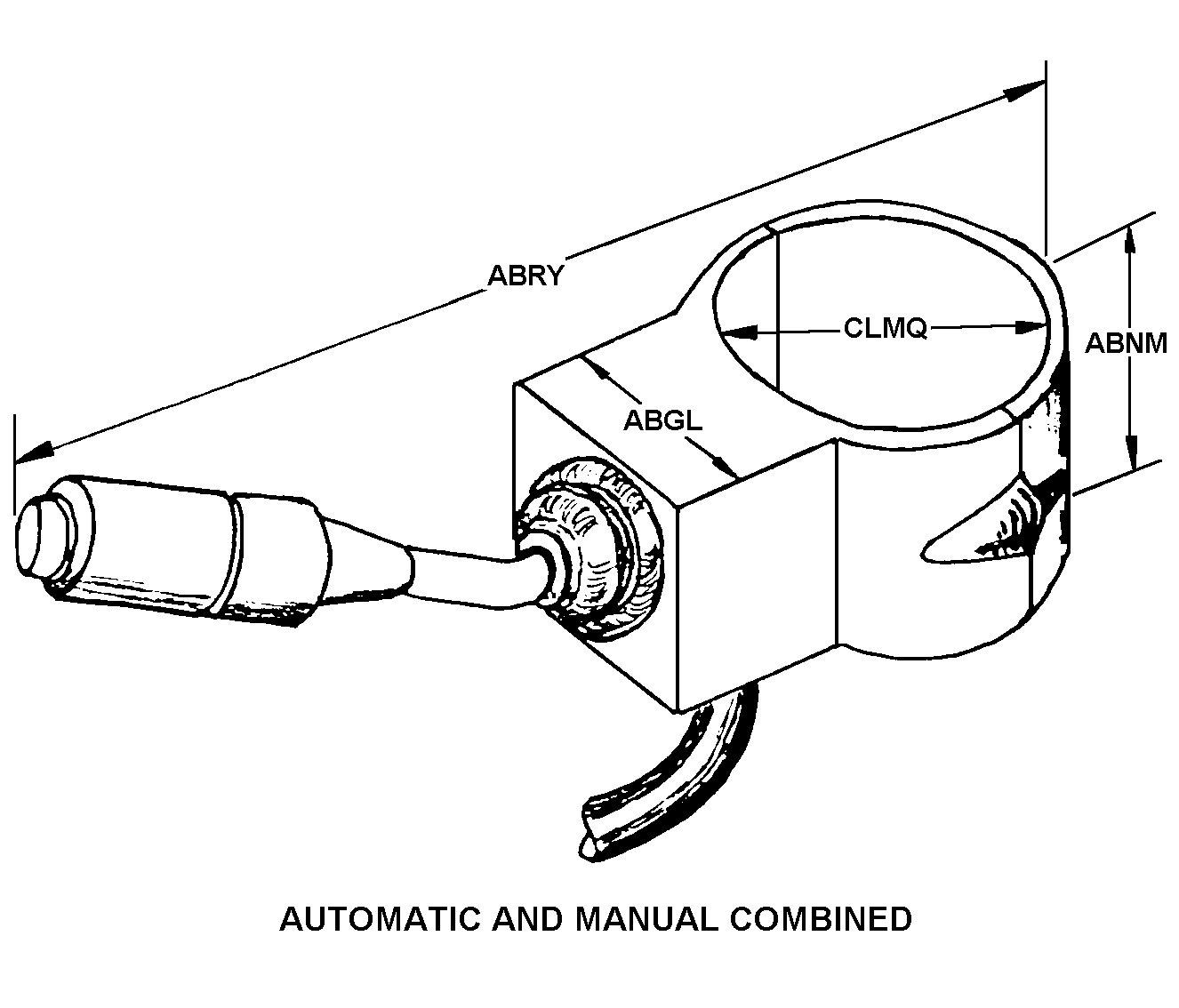

REFERENCE DRAWINGS & PICTURES
AUTOMATIC AND MANUAL COMBINED
Cross Reference | NSN 6220-01-376-3676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12417597 | 076M6 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
| 202.153 | 82484 | CVG SPRAGUE DEVICES, LLC |
| E-003-036 | 82484 | CVG SPRAGUE DEVICES, LLC |
| 12417597 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 6220-01-376-3676
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AUTOMATIC AND MANUAL COMBINED |
| WIDTH | 61.0 MILLIMETERS NOMINAL |
| THICKNESS | 55.0 MILLIMETERS NOMINAL |
| LENGTH | 250.0 MILLIMETERS NOMINAL |
| INCLOSURE MATERIAL | PLASTIC |
| OPERATING FUNCTION AND METHOD | ACTUATION LEVER AND DEACTUATION LEVER |
| FUNCTIONING SIGNAL METHOD | INDICATOR LIGHTS |
| SPECIAL FEATURES | MOUNTING FACILITY DIA. 55.0 MM |
| END ITEM IDENTIFICATION | MRAP - COMMON NSN - USED ON 2 MRAP VARIANTS AND 1 OTHER WEAPON SYSTEM |
