Part Details | MERCURY VAPOR LAMP
6240-00-170-5302 An item which produces light by an electric arc between two electrodes in an ionized mercury vapor atmosphere.
Alternate Parts: C1211, C-1211, 7657240, 7657-240, 7657240, 7657-240, 6240-00-170-5302, 00-170-5302, 6240001705302, 001705302
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | AUG 19, 1972 | 00-170-5302 | 03879 ( LAMP, MERCURY VAPOR ) |
REFERENCE DRAWINGS & PICTURES
WIRE LEADS, DOWN

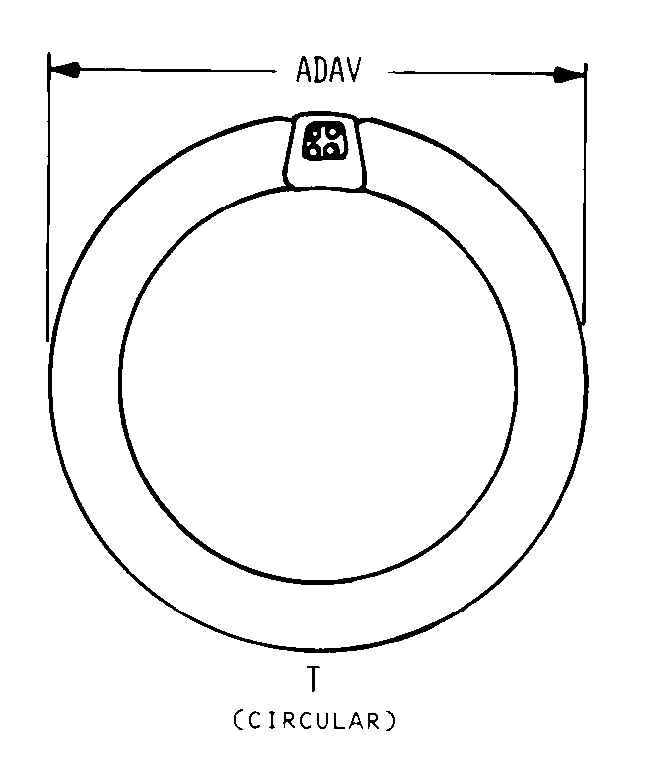

T (CIRCULAR)
Cross Reference | NSN 6240-00-170-5302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C-1211 | 08553 | ARISTO GRID LIGHTING TECHNOLOGIESLLC |
| 7657-240 | 80294 | BOURNS INSTRUMENTS INC |
| 7657-240 | 11871 | RECON/OPTICAL, INC. |
Technical Data | NSN 6240-00-170-5302
| Characteristic | Specifications |
|---|---|
| BASE STYLE | WIRE LEADS, DOWN |
| WIRE LEAD LENGTH | 1.500 INCHES NOMINAL |
| BULB STYLE | T (CIRCULAR) |
| BULB DESIGNATOR | T-2 |
| OVERALL DIAMETER | 5.750 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| WATTAGE RATING | 300.000 WATTS |
| VOLTAGE RATING | 1000.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 1000.0 |
| BURNING POSITION | |
| SPECIAL FEATURES | STARTING VOLTAGE 2000.000; LAMP MAY HAVE EITHER 3 OR 4 LEADS; COLD LIGHT HEAD |
