Part Details | INCANDESCENT LAMP
6240-00-174-1991 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: WL50, 4586, MS158192, MS15819-2, 4586, 6240-00-174-1991, 00-174-1991, 6240001741991, 001741991
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-174-1991 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

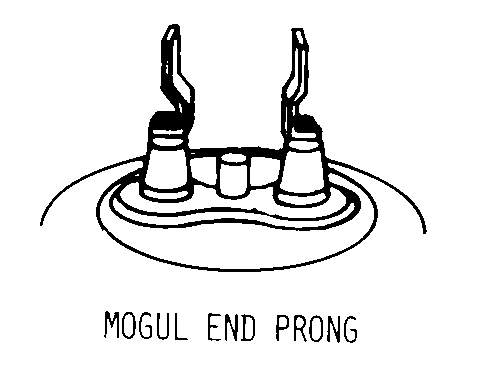

MOGUL END PRONG
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-174-1991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WL50 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 4586 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| MS15819-2 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 4586 | 1GDM9 | MORNING STAR INDUSTRIES INC. |
Technical Data | NSN 6240-00-174-1991
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MOGUL END PRONG |
| BULB STYLE | 7 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PAR-36 |
| OVERALL LENGTH | 3.375 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PARABOLIC REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-6 |
| WATTAGE RATING | 100.000 WATTS |
| VOLTAGE RATING | 6.500 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 7.692 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 100.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | HEAT RESISTANT GLASS |
| NONDEFINITIVE SPEC/STD DATA | I TYPE |
