Part Details | CARTRIDGE LAMP
6240-00-183-0505 An item consisting of an unbased lamp, either incandescent or glow, mounted in a sleeve. It has a projecting terminals and may also include a lens. For light emitting diodes which may or may not be mounted in a sleeve or a lamp base, see LIGHT EMITTING DIODE.
Alternate Parts: CFW022254801, CFW02-22548-01, 0N062635, CFW022254801, CFW02-22548-01, 6240-00-183-0505, 00-183-0505, 6240001830505, 001830505
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUN 08, 1970 | 00-183-0505 | 24416 ( LAMP, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES
FLUSH

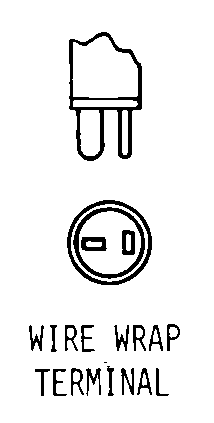

WIRE WRAP TERMINAL
Cross Reference | NSN 6240-00-183-0505
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CFW02-22548-01 | 07294 | GENISCO FILTER CORP. |
| 0N062635 | 98230 | NATIONAL SECURITY AGENCY |
| CFW02-22548-01 | 13050 | SPECTRUM CONTROL, INC.DIV API TECHNOLOGIES - EIS/WESSON |
Technical Data | NSN 6240-00-183-0505
| Characteristic | Specifications |
|---|---|
| BASE STYLE | WIRE WRAP TERMINAL |
| CARTRIDGE STYLE | FLUSH |
| CARTRIDGE OVERALL LENGTH | 1.019 INCHES NOMINAL |
| CARTRIDGE OVERALL DIAMETER | 0.350 INCHES NOMINAL |
| PRIMARY LAMP TYPE | INCANDESCENT |
| VOLTAGE RATING | 6.300 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.040 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 50000.0 |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LENS COLOR | COLORLESS |
| FEATURES PROVIDED | PREAGED LAMP |
| TEST DATA DOCUMENT | 98230-0N062635 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
