Part Details | MERCURY VAPOR LAMP
6240-00-184-5823 An item which produces light by an electric arc between two electrodes in an ionized mercury vapor atmosphere.
Alternate Parts: C78380, C78-380, H384JM, H38-4JM, H100PFL444, H100PFL44-4, H444JM, H44-4JM, H444JM, H44-4JM, H444JM, H44-4JM, P771016, P-77101-6, 6240-00-184-5823, 00-184-5823, 6240001845823, 001845823
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-184-5823 | 03879 ( LAMP, MERCURY VAPOR ) |
REFERENCE DRAWINGS & PICTURES

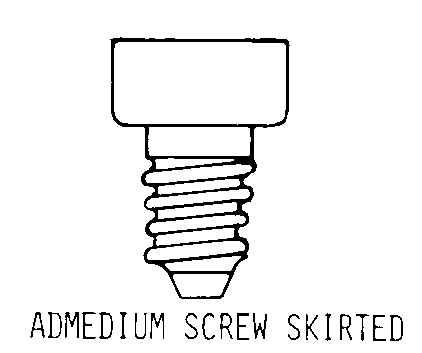

ADMEDIUM SCREW SKIRTED
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-184-5823
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C78-380 | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| H38-4JM | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| H100PFL44-4 | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| H44-4JM | 58854 | GTE PRODUCTS CORPLIGHTING PRODUCTS GROUP |
| H44-4JM | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| H44-4JM | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| P-77101-6 | 20772 | SPECTRONICS CORPORATIONDIV TRACER PRODUCTS |
Technical Data | NSN 6240-00-184-5823
| Characteristic | Specifications |
|---|---|
| BASE STYLE | ADMEDIUM SCREW SKIRTED |
| BULB STYLE | 6 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PAR-38 |
| OVERALL LENGTH | 5.438 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PARABOLIC REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | BLACK |
| WATTAGE RATING | 100.000 WATTS |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | |
| FEATURES PROVIDED | WATERPROOF TERMINALS |
| SPECIAL FEATURES | ENERGY SAVER |
