Part Details | INCANDESCENT LAMP
6240-00-233-3470 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: DEJ115120V, DEJ115-120V, WL126, PH750T123LR115120V, PH750T12-3LR115-120V, 6240-00-233-3470, 00-233-3470, 6240002333470, 002333470
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-233-3470 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

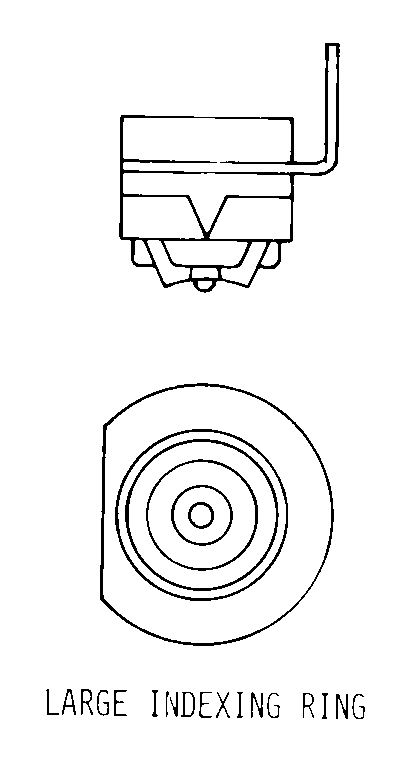

LARGE INDEXING RING
T (TUBULAR)
Cross Reference | NSN 6240-00-233-3470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DEJ115-120V | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| WL126 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| PH750T12-3LR115-120V | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
Technical Data | NSN 6240-00-233-3470
| Characteristic | Specifications |
|---|---|
| BASE STYLE | LARGE INDEXING RING |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-12 |
| OVERALL LENGTH | 5.500 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | OPAQUE END |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-13D |
| WATTAGE RATING | 750.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS MINIMUM AND 125.000 VOLTS MAXIMUM |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 25.0 |
| BURNING POSITION | HORIZONTAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | FILAMENT SHIELDING AND HEAT RESISTANT GLASS |
