Part Details | INCANDESCENT LAMP
6240-00-993-9239 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 50040120V, 500-40-120V, 500E40120V, EX500120V, EX500-120V, 500E40120V, 500E40-120V, 500AXE40120, 6240-00-993-9239, 00-993-9239, 6240009939239, 009939239
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1962 | 00-993-9239 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

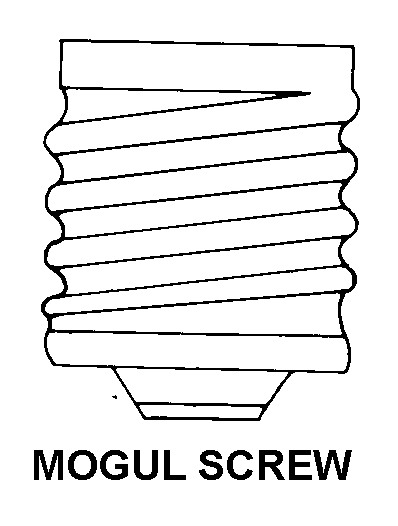

MOGUL SCREW EXPORT
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-993-9239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500-40-120V | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| 500E40120V | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| EX500-120V | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 500E40-120V | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 500AXE40120 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 6240-00-993-9239
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MOGUL SCREW EXPORT |
| BULB STYLE | 9 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PS-40 |
| OVERALL LENGTH | 9.750 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-9 |
| WATTAGE RATING | 500.000 WATTS |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 1000.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
