Part Details | FLASHTUBE LAMP
6240-01-006-1260 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: HV1734QPAR56, HV1-734Q-PAR56, HV17330PAR56, HV1-733-0-PAR56, HV1733QPAR 56, HV1-733-Q-/PAR 56, G1231303, G1-23-1303, 100471042, 10047-1042, 760.1910, FT34HP, DR34HP, DR34/HP, GN34, GEA20320, GEA20230, GS707815, GS7078-15, AL5445, LA61202P56P, 6240-01-006-1260, 01-006-1260, 6240010061260, 010061260
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUL 14, 1975 | 01-006-1260 | 03314 ( LAMP, FLASHTUBE ) |

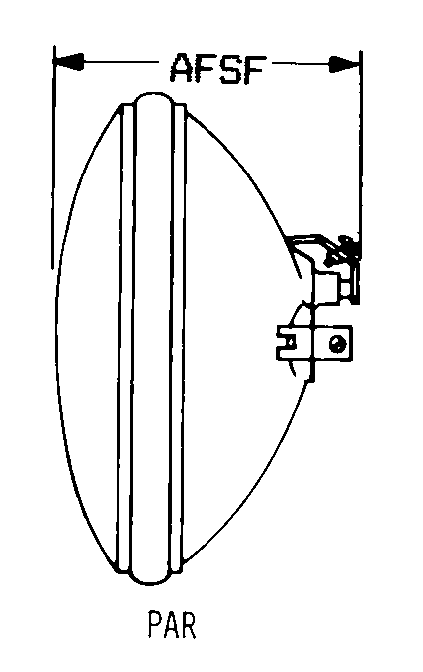

REFERENCE DRAWINGS & PICTURES
PAR
THREE CONTACT LUGS
Cross Reference | NSN 6240-01-006-1260
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HV1-734Q-PAR56 | 70558 | AMGLO KEMLITE LABORATORIES, INC.DBA AMGLO |
| HV1-733-0-PAR56 | 70558 | AMGLO KEMLITE LABORATORIES, INC.DBA AMGLO |
| HV1-733-Q-/PAR 56 | 70558 | AMGLO KEMLITE LABORATORIES, INC.DBA AMGLO |
| G1-23-1303 | 55827 | ASTRONICS DME LLCDBA ASTRONICS DME |
| 10047-1042 | 18192 | COOPER CROUSE-HINDS, LLCDBA AIRPORT LIGHTING DIVISION |
| 760.1910 | AK643 | ENERGY TECHNOLOGY SRL |
| FT34HP | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| DR34/HP | 08807 | GENERAL ELECTRIC COPHOTO LAMP DEPT |
| GN34 | 60426 | GENESIS LAMP CORP. |
| GEA20320 | 55438 | GOODRICH LIGHTING SYSTEMS, INC. |
| GEA20230 | 55438 | GOODRICH LIGHTING SYSTEMS, INC. |
| GS7078-15 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| AL5445 | 94295 | HUGHEY & PHILLIPS INCDBA HONEYWELL AIRPORT SYSTEMS |
| LA61202P56P | 94295 | HUGHEY & PHILLIPS INCDBA HONEYWELL AIRPORT SYSTEMS |
Technical Data | NSN 6240-01-006-1260
| Characteristic | Specifications |
|---|---|
| BASE STYLE | THREE CONTACT LUGS |
| FLASHTUBE STYLE | PAR |
| FLASHTUBE OVERALL LENGTH | 4.125 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | REFLECTIVE BOWL |
| EMITTED LIGHT CHARACTERISTIC | BLUE-WHITE |
| FILLING GAS TYPE |
