Part Details | FLASHTUBE LAMP
6240-01-016-6097 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: FT118G, FT-118G, 6240-01-016-6097, 01-016-6097, 6240010166097, 010166097
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | FEB 15, 1976 | 01-016-6097 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES
LINEAR

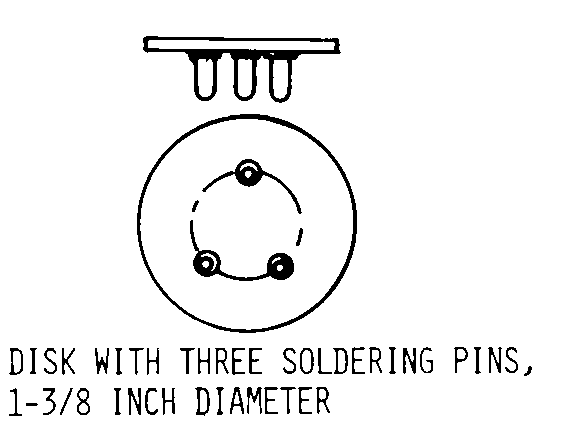

DISK WITH THREE SOLDERING PINS,1-3/8 INCH DIAMETER
Cross Reference | NSN 6240-01-016-6097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FT-118G | 08807 | GENERAL ELECTRIC COPHOTO LAMP DEPT |
Technical Data | NSN 6240-01-016-6097
| Characteristic | Specifications |
|---|---|
| BASE STYLE | DISK WITH THREE SOLDERING PINS,1-3/8 INCH DIAMETER |
| FLASHTUBE STYLE | 3 LINEAR |
| FLASHTUBE OVERALL LENGTH | 2.500 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILLING GAS TYPE | XENON |
| VOLTAGE RATING | 500.000 VOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 200.0 |
| LIGHT CENTER LENGTH | 0.875 INCHES NOMINAL |
