Part Details | INCANDESCENT LAMP
6240-01-022-9148 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 02100, 150, 02100, 6240-01-022-9148, 01-022-9148, 6240010229148, 010229148
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUN 07, 1976 | 01-022-9148 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

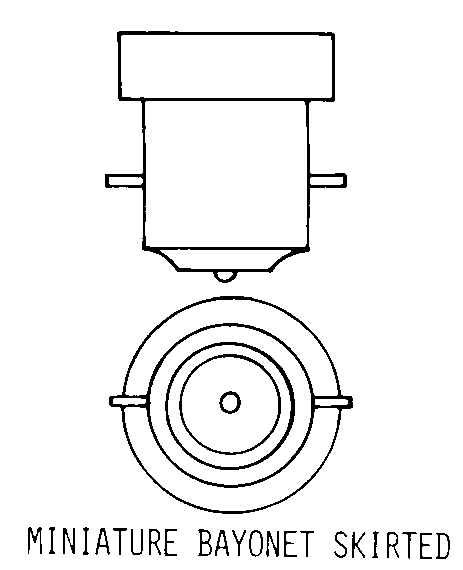

MINIATURE BAYONET SKIRTED
T (TUBULAR)
Cross Reference | NSN 6240-01-022-9148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02100 | 64475 | WELCH ALLYN HOLDINGS, INC. |
| 150 | 64475 | WELCH ALLYN HOLDINGS, INC. |
| 02100 | 05CJ3 | WELCH ALLYN, INC. |
Technical Data | NSN 6240-01-022-9148
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MINIATURE BAYONET SKIRTED |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-1 1/2 |
| OVERALL LENGTH | 0.594 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-2F |
| VOLTAGE RATING | 2.500 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.380 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 13.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| SPECIAL FEATURES | TUNGSTEN FILAMENT MATERIAL |
