Part Details | FLASHTUBE LAMP
6240-01-027-4751 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: H91, H9-1, 6240-01-027-4751, 01-027-4751, 6240010274751, 010274751
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | SEP 18, 1976 | 01-027-4751 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES

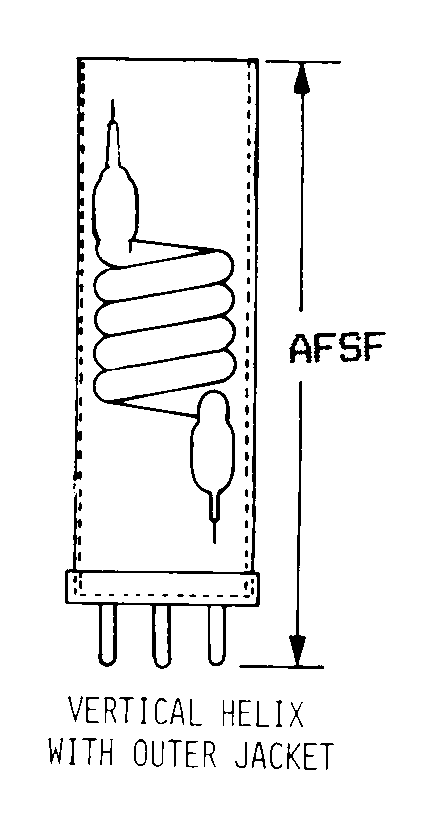

VERTICAL HELIX WITH OUTER JACKET
LARGE THREE PIN
Cross Reference | NSN 6240-01-027-4751
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H9-1 | 47097 | PHOTOGENIC MACHINE CO THE |
Technical Data | NSN 6240-01-027-4751
| Characteristic | Specifications |
|---|---|
| BASE STYLE | LARGE THREE PIN |
| FLASHTUBE STYLE | VERTICAL HELIX WITH OUTER JACKET |
| FLASHTUBE OVERALL LENGTH | 5.562 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILLING GAS TYPE | |
| VOLTAGE RATING | 900.000 VOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 200.0 |
| MAXIMUM FLASHING RATE PER SECOND | 4 |
