Part Details | INCANDESCENT LAMP
6240-01-077-9610 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: MES24V2.8W, G05581840A, G05581-840A, G05581840A, G05581-840A, MES24V2.8W, 6240-01-077-9610, 01-077-9610, 6240010779610, 010779610
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUN 05, 1979 | 01-077-9610 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

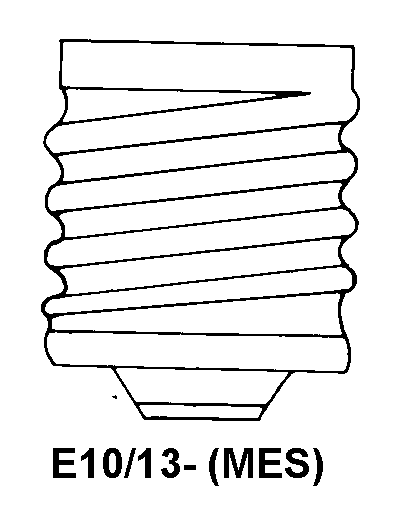

E10/13 - (MES)
T (TUBULAR)
Cross Reference | NSN 6240-01-077-9610
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MES24V2.8W | K5688 | GE LIGHTING OPERATIONS LTD |
| G05581-840A | K0349 | M L AVIATION LTD INCORPORATING M LWALLOP DEFENCE SYSTEMS LTD |
| G05581-840A | K4234 | TEXTRON GROUND SUPPORT EQUIPMENTUKLIMITEDMENT |
| MES24V2.8W | U1609 | THORN ELECTRICAL INDUSTRIES LTD |
Technical Data | NSN 6240-01-077-9610
| Characteristic | Specifications |
|---|---|
| BASE STYLE | E10/13 - (MES) |
| BULB STYLE | T (TUBULAR) |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| WATTAGE RATING | 2.800 WATTS |
| VOLTAGE RATING | 24.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.117 AMPERES NOMINAL |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
