Part Details | SODIUM LAMP
6240-01-097-8685 An item which produces light by an electric arc between two electrodes in an ionized sodium vapor atmosphere.
Alternate Parts: L70RB35, L70RB-35, 4256722, 425672-2, 425672, SOX35 WATT, SOX-35 WATT, 327817, 32781-7, 09300, 6240-01-097-8685, 01-097-8685, 6240010978685, 010978685
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUL 21, 1980 | 01-097-8685 | 33518 ( LAMP, SODIUM ) |
REFERENCE DRAWINGS & PICTURES

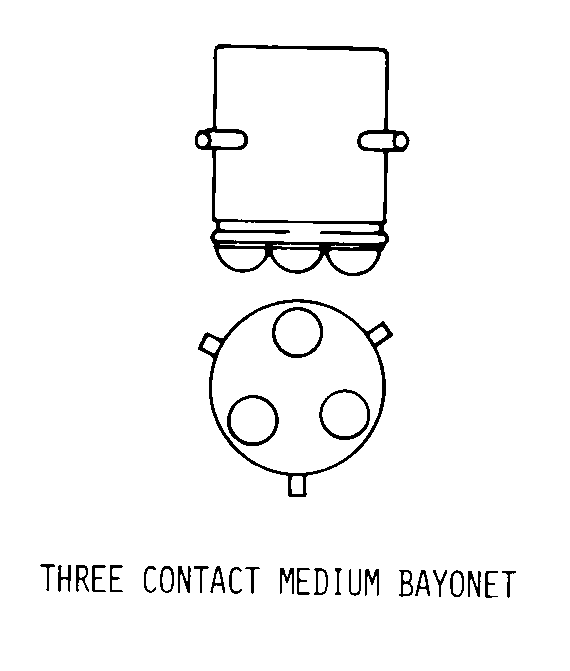

THREE CONTACT MEDIUM BAYONET
T (TUBULAR)
Cross Reference | NSN 6240-01-097-8685
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L70RB-35 | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| 425672-2 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 425672 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| SOX-35 WATT | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| 32781-7 | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| 09300 | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
Technical Data | NSN 6240-01-097-8685
| Characteristic | Specifications |
|---|---|
| BASE STYLE | THREE CONTACT MEDIUM BAYONET |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-2 1/8 |
| OVERALL LENGTH | 12.188 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | INSIDE COATED |
| EMITTED LIGHT CHARACTERISTIC | YELLOW, LIGHT |
| WATTAGE RATING | 35.000 WATTS |
| VOLTAGE RATING | 70.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 18000.0 |
| BURNING POSITION | BASE UP TO 20 DEGREES ABOVE HORIZONTAL |
| LIGHT CENTER LENGTH | 7.250 INCHES NOMINAL |
