Part Details | INCANDESCENT LAMP
6240-01-145-3931 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 78696918859, 78-6969-1885-9, EPR, 6240-01-145-3931, 01-145-3931, 6240011453931, 011453931
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 11, 1983 | 01-145-3931 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

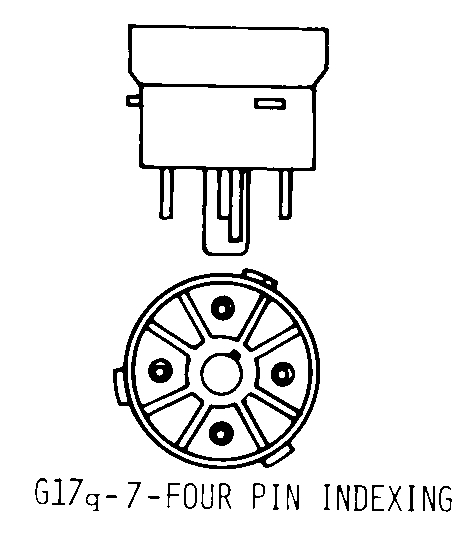

G17Q-7-FOUR PIN INDEXING
T (TUBULAR)
Cross Reference | NSN 6240-01-145-3931
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78-6969-1885-9 | 28217 | 3M COMPANYDIV MOBILE INTERACTIVE SYSTEMS |
| EPR | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
Technical Data | NSN 6240-01-145-3931
| Characteristic | Specifications |
|---|---|
| BASE STYLE | G17Q-7-FOUR PIN INDEXING |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-6 |
| OVERALL LENGTH | 2.700 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PROXIMITY REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-13D |
| WATTAGE RATING | 500.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 4.166 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 50.0 |
| BURNING POSITION | BASE DOWN TO HORIZONTAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| COLOR TEMP IN DEG KELVIN | 3250.0 |
| END ITEM IDENTIFICATION | 5.088 |
