Part Details | INCANDESCENT LAMP
6240-01-203-7625 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 90400002, 904-00002, 6240-01-203-7625, 01-203-7625, 6240012037625, 012037625
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | MAR 19, 1985 | 01-203-7625 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

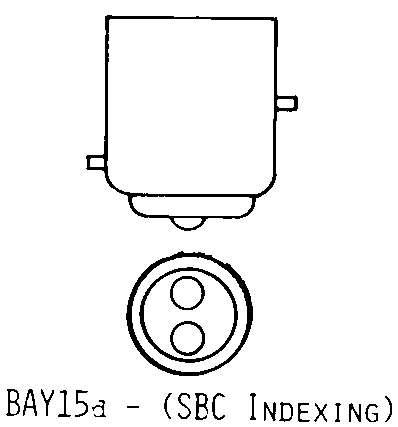

BAY15D (SBC Indexing)
T (TUBULAR)
Cross Reference | NSN 6240-01-203-7625
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 904-00002 | 61204 | GLAMOX AQUA SIGNAL CORPORATION |
Technical Data | NSN 6240-01-203-7625
| Characteristic | Specifications |
|---|---|
| BASE STYLE | BAY15D (SBC Indexing) |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-8 |
| OVERALL LENGTH | 68.0 MILLIMETERS NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| WATTAGE RATING | 25.000 WATTS |
| VOLTAGE RATING | 12.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 2.083 AMPERES NOMINAL |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
