Part Details | MERCURY VAPOR LAMP
6240-01-240-6527 An item which produces light by an electric arc between two electrodes in an ionized mercury vapor atmosphere.
Alternate Parts: HPW 125W, H125, 6240-01-240-6527, 01-240-6527, 6240012406527, 012406527
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | SEP 16, 1986 | 01-240-6527 | 03879 ( LAMP, MERCURY VAPOR ) |
REFERENCE DRAWINGS & PICTURES

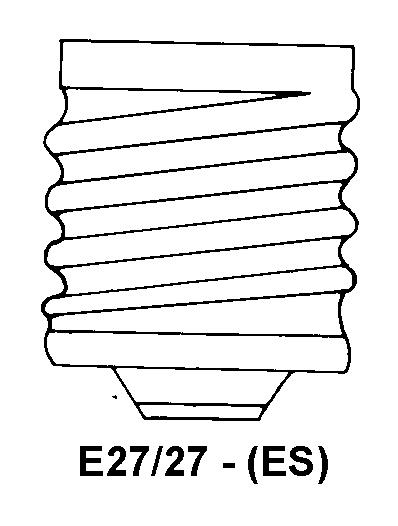

E27/27 - (ES)
E (ELIPTICAL)
Cross Reference | NSN 6240-01-240-6527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HPW 125W | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| H125 | 51454 | WESTRON CORPORATIONDBA WESTRON LIGHTING |
Technical Data | NSN 6240-01-240-6527
| Characteristic | Specifications |
|---|---|
| BASE STYLE | E27/27 - (ES) |
| BULB STYLE | E (ELIPTICAL) |
| BULB DESIGNATOR | E-18 |
| OVERALL LENGTH | 177.0 MILLIMETERS NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | INSIDE COATED |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| WATTAGE RATING | 125.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | |
| FEATURES PROVIDED | HEAT RESISTANT GLASS |
| END ITEM IDENTIFICATION | GALAXY C-5 AIRCRAFT |
