Part Details | INCANDESCENT LAMP
6240-01-255-3991 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: EVW, EVW, 6240-01-255-3991, 01-255-3991, 6240012553991, 012553991
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | MAY 20, 1987 | 01-255-3991 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

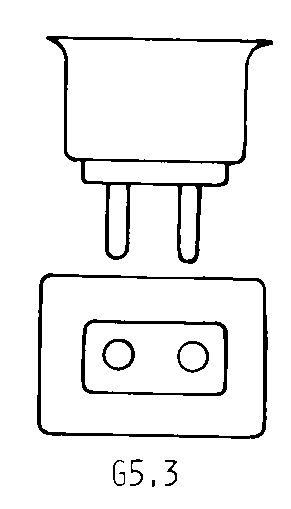

G5.3
B (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-01-255-3991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EVW | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| EVW | 08807 | GENERAL ELECTRIC COPHOTO LAMP DEPT |
Technical Data | NSN 6240-01-255-3991
| Characteristic | Specifications |
|---|---|
| BASE STYLE | G5.3 |
| BULB STYLE | 4 B (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | MR-16 |
| OVERALL LENGTH | 1.750 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | DICHROIC REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | CC-8 |
| WATTAGE RATING | 250.000 WATTS |
| VOLTAGE RATING | 82.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 50.0 |
| BURNING POSITION | BASE DOWN TO HORIZONTAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| COLOR TEMP IN DEG KELVIN | 3300.0 |
