Part Details | VOLTMETER
6625-00-024-3629 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Alternate Parts: VM212A, VM212A, 6625-00-024-3629, 00-024-3629, 6625000243629, 000243629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | OCT 17, 1972 | 00-024-3629 | 16449 ( VOLTMETER ) |
REFERENCE DRAWINGS & PICTURES

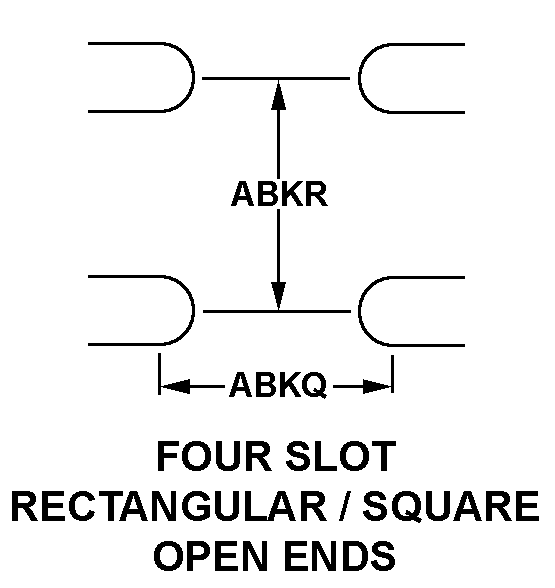

FOUR SLOT RECTANGULAR/SQUARE OPEN ENDS
RACK
Cross Reference | NSN 6625-00-024-3629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VM212A | 07342 | NAI TECHNOLOGIES INC |
| VM212A | 0VGU1 | NORTH ATLANTIC INDUSTRIES, INC. |
Technical Data | NSN 6625-00-024-3629
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | RACK |
| FREQUENCY RESPONSE RANGE | +0.030 TO +10.000 KILOHERTZ |
| STYLE DESIGNATOR | RACK |
| MOUNTING ARRANGEMENT STYLE | FOUR SLOT RECTANGULAR/SQUARE OPEN ENDS |
| SPECIAL FEATURES | MEASURES QUADRATURE VOLTAGE AND VOLTAGE PHASE ANGLE TO ONE DEG |
